Bosch Rexroth AZPF Hydraulic Gear Pump

Sizes:004 005 008 011 014 016 019 022 025 028
Nominal Pressure:230 bar
Maximum Pressure:250 bar
Operation Mode:AZPF External Gear Pumps

Chat Now

Rexroth AZPF Hydraulic Single Gear Pump

Characteristic

The Bosch Rexroth AZPF hydraulic gear pump range is available in various displacements from 4 cc to 28 cc to meet a variety of hydraulic system requirements. Operates at a nominal pressure of 280 bar.

Equipped with plain bearings, these pumps are designed to withstand heavy-duty use, ensuring durability and longevity even under harsh operating conditions. The availability of drive shafts compatible with SAE and ISO standards enhances their adaptability and ease of integration into different setups.

AZPF pump ports are available in threaded or flanged configurations, providing flexibility in mounting options to accommodate different system designs. With a variety of configurations available, including tandem pumps and multi-pump setups, there’s the versatility to effectively meet different application needs.

In addition to standard configurations, customization options are available to customize the pump to specific requirements, ensuring optimal performance and efficiency of the hydraulic system.

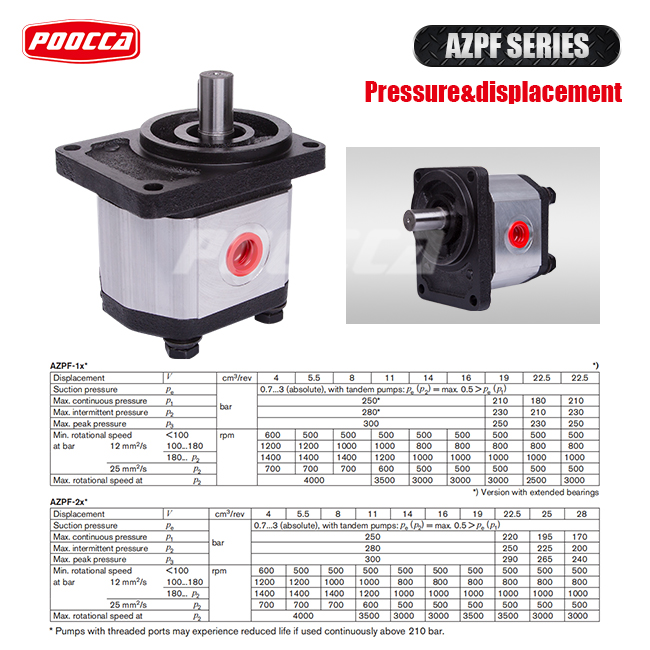

Parameter

AZPF 1X Gear Pump
Displacement		V	cm3/rev	4	5.5	8	11	14	16	19	22.5	22.5
Suction pressure p_e				0.7…3 (absolute), with tandem pumps: p_e ( p₂) = max. 0.5 > p_e ( p₁)
Max. continuous pressure p₁			bar	250*						210	180	210
Max. intermittent pressure p₂				280*						230	210	230
Max. peak pressure p₃				300						250	230	250
Min. rotational speed at bar 12 mm2/s		< 100	rpm	600	500	500	500	500	500	500	500	500
		100…180		1200	1200	1000	1000	800	800	800	800	800
		180… p₂		1400	1400	1400	1200	1000	1000	1000	1000	1000
	25 mm2/s p2			700	700	700	600	500	500	500	500	500
Max. rotational speed at p₂				4000			3500	3000	3000	3000	2500	3000
AZPF 2X Gear Pump
Displacement		V	cm3/rev	4	5.5	8	11	14	16	19	22.5	25	28
Suction pressure p_e			bar	0.7…3 (absolute), with tandem pumps: p_e ( p₂) = max. 0.5 > p_e ( p₁)
Max. continuous pressure p₁				250							220	195	170
Max. intermittent pressure p₂				280							250	225	200
Max. peak pressure p₃				300							290	265	240
Min. rotational speed		< 100	rpm	600	500	500	500	500	500	500	500	500	500
at bar 12 mm2/s		100…180		1200	1200	1000	1000	800	800	800	800	800	800
		180… p₂		1400	1400	1400	1200	1000	1000	1000	1000	1000	1000
	25 mm2/s p2			700	700	700	600	500	500	500	500	500	500
Max. rotational speed at p₂				4000			3500	3000	3000	3500	3500	3000	3000
* Pumps with threaded ports may experience reduced life if used continuously above 210 bar.

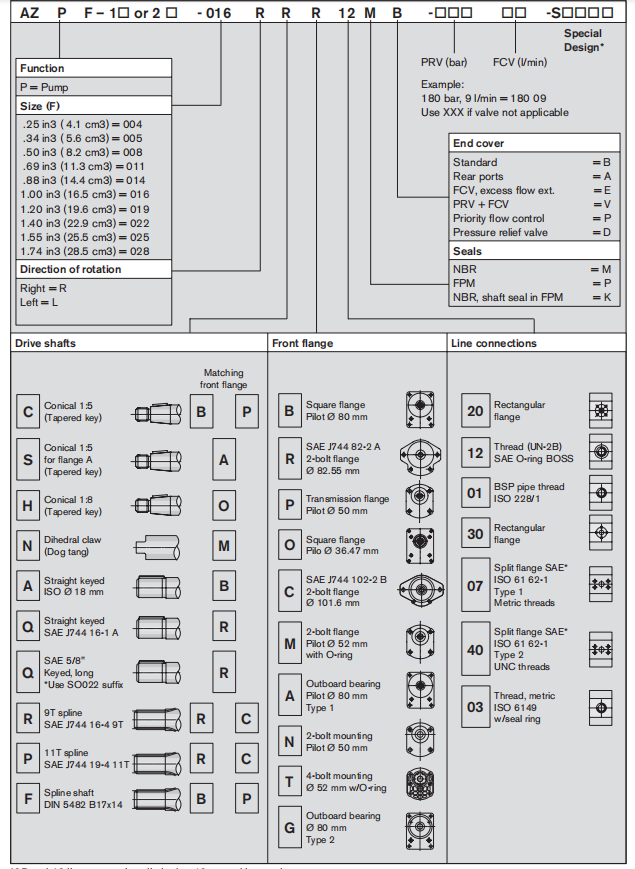

Order Code

POOCCA azpf series external gear pump can be combined with duplex pump. For example: azpff, azpfb,azpnf, azpgf, etc.

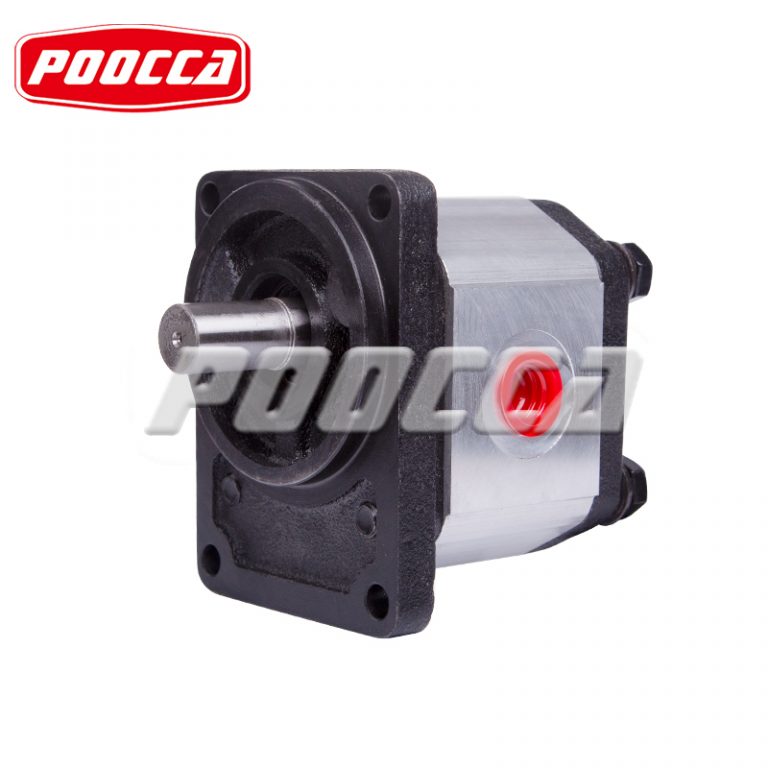

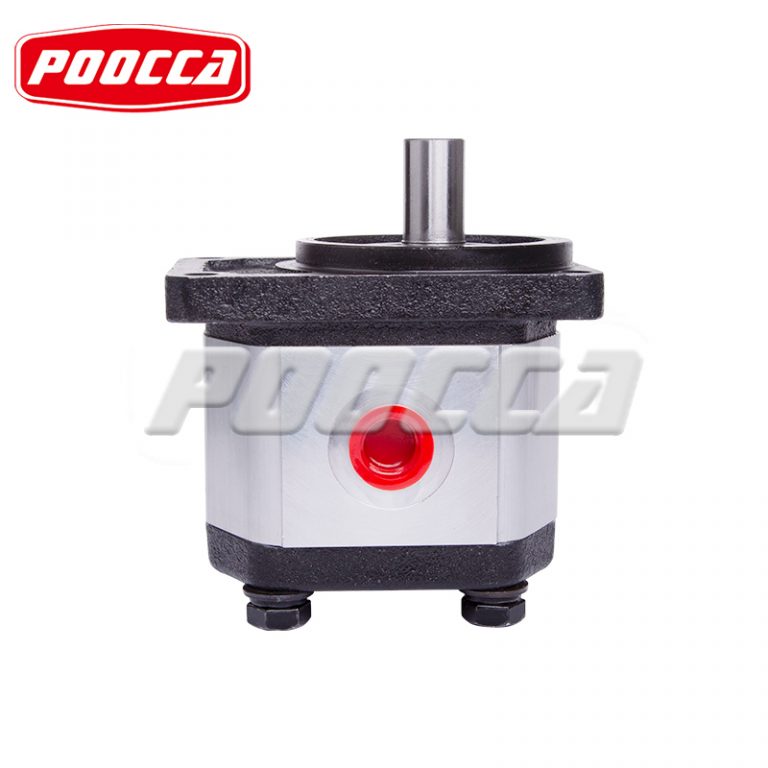

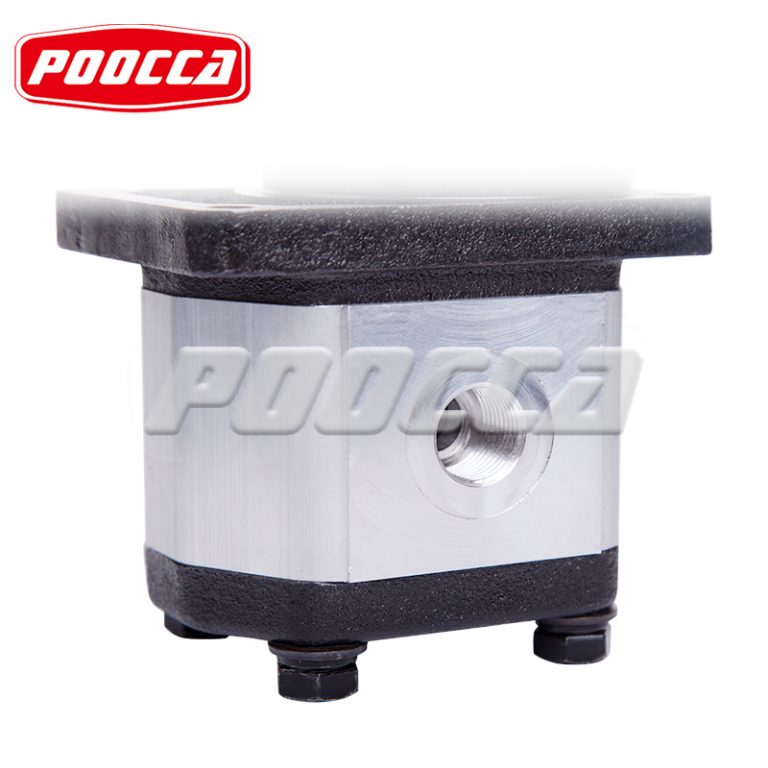

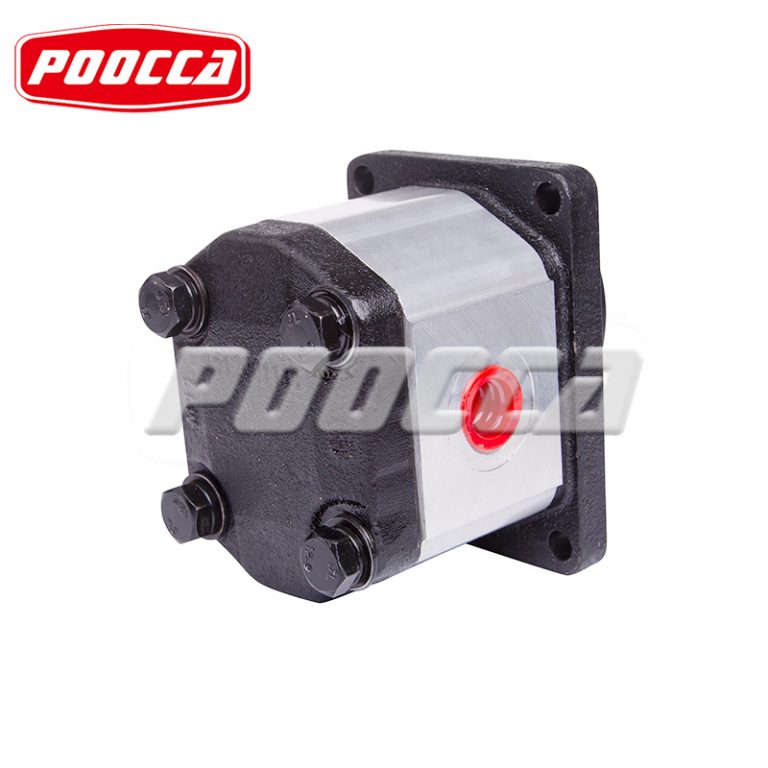

AZPF Gear Pump Detail image

FAQ

Q:1.How long is the quality assurance？
–12 months.
Q:2.What is the MOQ?
–MOQ:1pcs.
Q:3.Can I Mark My Own Brand On The Pump?
–Yes. Full order Can mark your brand and code.
Q:4.How long is your delivery time?
–Generally it is 2-3 days if the goods are in stock. or it is 7-15 days .if the goods are not in stock, it is according to quantity.
