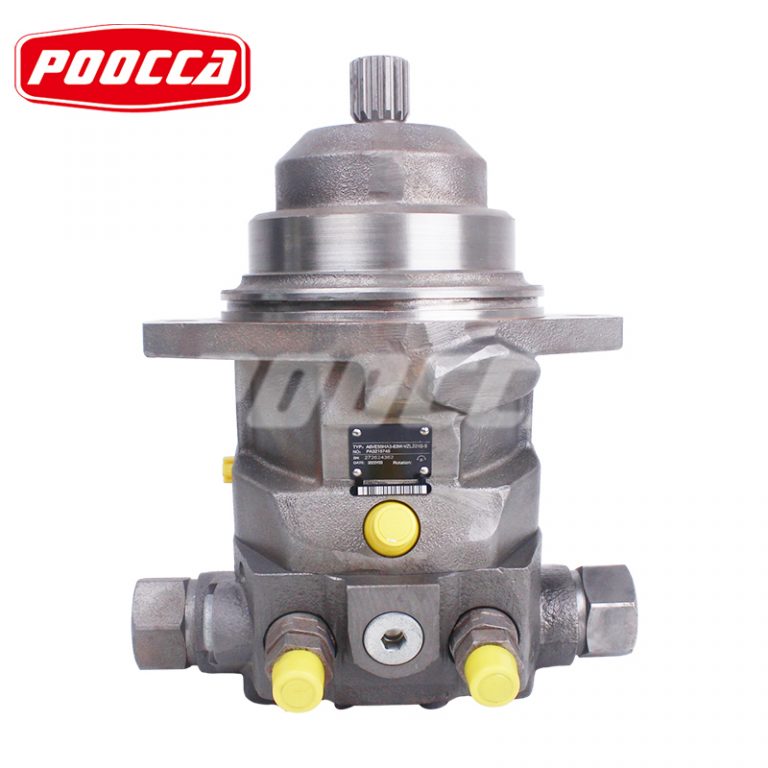

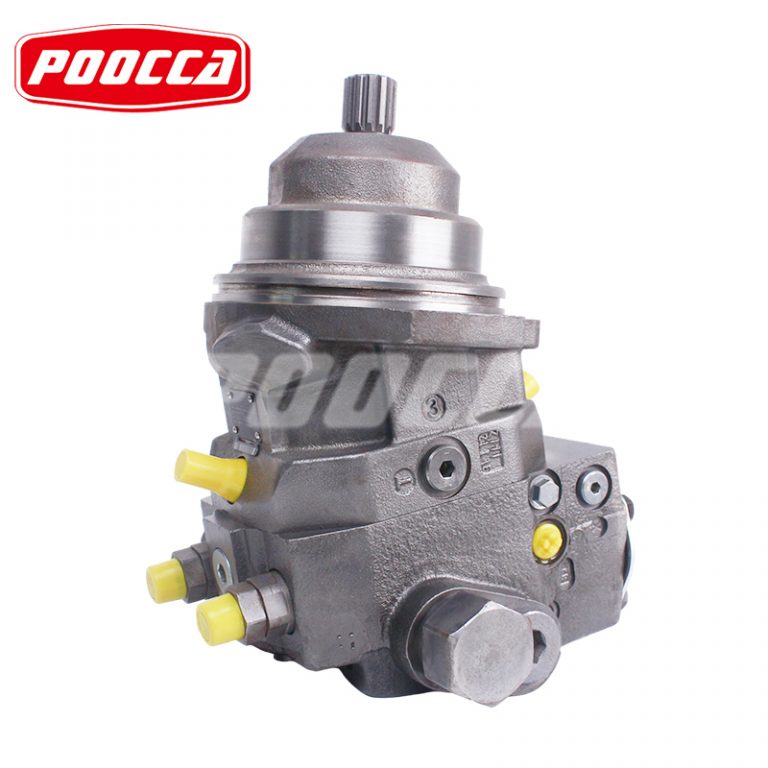

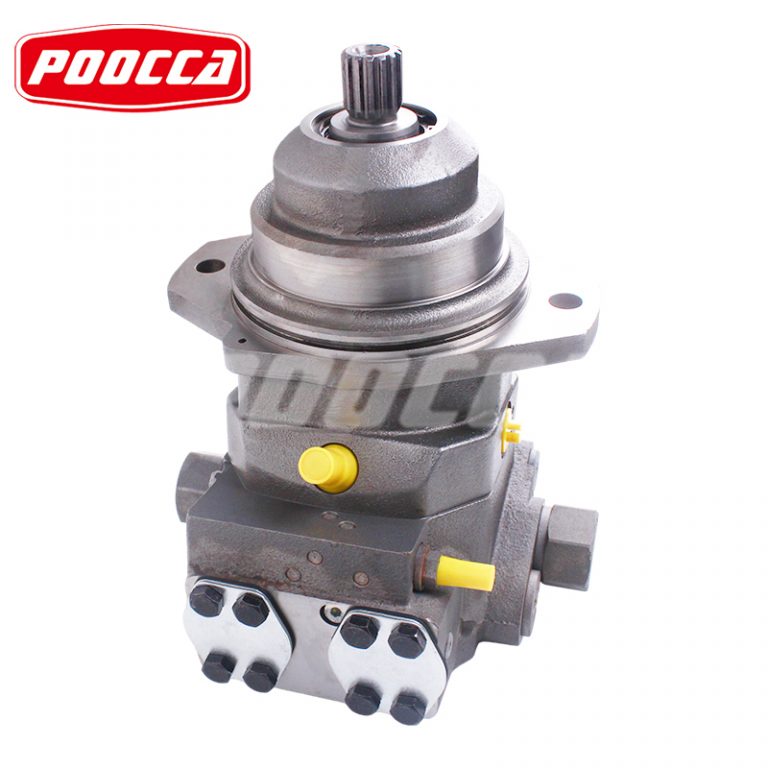

A6VE Rexroth hydraulic motor series, available in various sizes to meet various hydraulic system requirements. Sizes range from 28 to 250, providing versatile solutions for different applications.
For motor sizes 28 to 160, the nominal pressure rating is 400 bar and the peak pressure capability is 450 bar. Meanwhile, the A6VE motor size 250 has a nominal pressure of 350 bar and a peak pressure rating of 400 bar.
Rexroth’s A6VE hydraulic motors are engineered for reliability and performance, delivering consistent operation under demanding conditions.
1. Integrated variable plug-in motor:
Featuring an axially tapered piston-rotor assembly of oblique axis design, the A6VE is designed for static hydraulic transmission in open and closed circuits. With a centrally recessed mounting flange, it can be compactly integrated into the mechanical gearbox, resulting in significant space savings.
2. Easy to install and test:
Installation is easy, just plug it into the mechanical gearbox, no specific configuration techniques are required. The A6VE Rexroth hydraulic motor is ready for test component installation, ensuring a streamlined installation process.
3. Ideal for mobile applications:
Tailored for mobile applications, the A6VE offers infinitely variable displacement from Vg max to Vg min = 0, providing a wide control range to meet high-speed and high-torque requirements.
A6VE Sizes:A6VE 28,A6VE 55,A6VE80,A6VE107,A6VE160,A6VE200,A6VE250
1.Innovative Design: Rexroth’s variable insertion motors feature a slanted shaft design with an axially tapered piston rotating group, ensuring outstanding performance and durability.
2.High Speed Certification: Extremely high speed certification ensures optimal performance of the hydrostatic drive in both open and closed circuits.
3.Space-saving integration: The motor adopts an embedded mounting flange, which saves installation space and improves overall system efficiency.
4.Simplified Setup: Seamless integration with mechanical transmission simplifies the setup process and minimizes installation complexity.
5.Improved efficiency: The A6VE plunger pump has high starting efficiency and significant low-speed operating characteristics, which enhances operational reliability.
6.Wide Control Range: Offers a wide control range that can be rotated to zero, ensuring precise control for a variety of applications.
7.Excellent Torque: Designed to deliver superior torque to excel in demanding applications, ensuring robust performance.
8.Customization options: Integrated options such as flush valves and boost valves are available to tailor the motor to specific system requirements.
9.Enhanced stability: A6VE Rexroth hydraulic motors can optionally be equipped with an integrated or mounted counterbalance valve, further enhancing operational stability and performance.
| Rexroth A6VE series Motor | ||||||||||
| Size | 28 | 55 | 80 | 107 | 160 | 200 | 250 | |||
| Series | 63 | 65 | 65 | 65 | 65 | 65 | 63 | |||
| Displacement | Vg max | cmยณ | 28.1 | 54.8 | 80 | 107 | 160 | 200 | 250 | |
| Vg x | cmยณ | 18 | 35 | 51 | 68 | 61 | 76 | 188 | ||
| Nominal pressure | pnom | bar | 400 | 400 | 400 | 400 | 400 | 400 | 350 | |
| Maximum pressure | pmax | bar | 450 | 450 | 450 | 450 | 450 | 450 | 400 | |
| Maximum speed | at Vg maxย 1) | nnom | rpm | 5550 | 4450 | 3900 | 3550 | 3100 | 2900 | 2700 |
| at Vgย < Vg x | nmax | rpm | 8750 | 7000 | 6150 | 5600 | 4900 | 4600 | 3300 | |
| at Vg min | nmax 0 | rpm | 10450 | 8350 | 7350 | 6300 | 5500 | 5100 | 3300 | |
| Inlet flowย 2) | at Vg maxย and nnom | qV nom | l/min | 156 | 244 | 312 | 380 | 496 | 580 | 675 |
| Torque | at Vg maxย and pnom | M | Nm | 179 | 349 | 509 | 681 | 1019 | 1273 | 1391 |
| Weight (approx.) | m | kg | 16 | 28 | 36 | 46 | 62 | 78 | 110 | |
POOCCAย often participates in exhibitions in some countries to let more hydraulic users know us, and push poocca hydraulic products with good quality, favorable price and good service to various countries. If you want to buy hydraulic pumps, motors, accessories, hydraulic For hydraulic needs such as cylinders, please feel free to contact us at poocca and we look forward to hearing from you.
A6VM piston motor output speed depends on the pump flow and motor displacement, while the output torque increases with the increase in pressure difference between the high-pressure side and low-pressure side and the increase in displacement. These features make it ideal for demanding applications, especially in the field of mobile machinery.
1. Integrated variable plug-in motor:
Featuring an axially tapered piston-rotor assembly of oblique axis design, the A6VE is designed for static hydraulic transmission in open and closed circuits. With a centrally recessed mounting flange, it can be compactly integrated into the mechanical gearbox, resulting in significant space savings.
2. Easy to install and test:
Installation is easy, just plug it into the mechanical gearbox, no specific configuration techniques are required. The A6VE Rexroth hydraulic motor is ready for test component installation, ensuring a streamlined installation process.
3. Ideal for mobile applications:
Tailored for mobile applications, the A6VE offers infinitely variable displacement from Vg max to Vg min = 0, providing a wide control range to meet high-speed and high-torque requirements.
A6VE Sizes:A6VE 28,A6VE 55,A6VE80,A6VE107,A6VE160,A6VE200,A6VE250
1.Innovative Design: Rexroth’s variable insertion motors feature a slanted shaft design with an axially tapered piston rotating group, ensuring outstanding performance and durability.
2.High Speed Certification: Extremely high speed certification ensures optimal performance of the hydrostatic drive in both open and closed circuits.
3.Space-saving integration: The motor adopts an embedded mounting flange, which saves installation space and improves overall system efficiency.
4.Simplified Setup: Seamless integration with mechanical transmission simplifies the setup process and minimizes installation complexity.
5.Improved efficiency: The A6VE plunger pump has high starting efficiency and significant low-speed operating characteristics, which enhances operational reliability.
6.Wide Control Range: Offers a wide control range that can be rotated to zero, ensuring precise control for a variety of applications.
7.Excellent Torque: Designed to deliver superior torque to excel in demanding applications, ensuring robust performance.
8.Customization options: Integrated options such as flush valves and boost valves are available to tailor the motor to specific system requirements.
9.Enhanced stability: A6VE Rexroth hydraulic motors can optionally be equipped with an integrated or mounted counterbalance valve, further enhancing operational stability and performance.
| Rexroth A6VE series Motor | ||||||||||
| Size | 28 | 55 | 80 | 107 | 160 | 200 | 250 | |||
| Series | 63 | 65 | 65 | 65 | 65 | 65 | 63 | |||
| Displacement | Vg max | cmยณ | 28.1 | 54.8 | 80 | 107 | 160 | 200 | 250 | |
| Vg x | cmยณ | 18 | 35 | 51 | 68 | 61 | 76 | 188 | ||
| Nominal pressure | pnom | bar | 400 | 400 | 400 | 400 | 400 | 400 | 350 | |
| Maximum pressure | pmax | bar | 450 | 450 | 450 | 450 | 450 | 450 | 400 | |
| Maximum speed | at Vg maxย 1) | nnom | rpm | 5550 | 4450 | 3900 | 3550 | 3100 | 2900 | 2700 |
| at Vgย < Vg x | nmax | rpm | 8750 | 7000 | 6150 | 5600 | 4900 | 4600 | 3300 | |
| at Vg min | nmax 0 | rpm | 10450 | 8350 | 7350 | 6300 | 5500 | 5100 | 3300 | |
| Inlet flowย 2) | at Vg maxย and nnom | qV nom | l/min | 156 | 244 | 312 | 380 | 496 | 580 | 675 |
| Torque | at Vg maxย and pnom | M | Nm | 179 | 349 | 509 | 681 | 1019 | 1273 | 1391 |
| Weight (approx.) | m | kg | 16 | 28 | 36 | 46 | 62 | 78 | 110 | |
POOCCAย often participates in exhibitions in some countries to let more hydraulic users know us, and push poocca hydraulic products with good quality, favorable price and good service to various countries. If you want to buy hydraulic pumps, motors, accessories, hydraulic For hydraulic needs such as cylinders, please feel free to contact us at poocca and we look forward to hearing from you.
A6VM piston motor output speed depends on the pump flow and motor displacement, while the output torque increases with the increase in pressure difference between the high-pressure side and low-pressure side and the increase in displacement. These features make it ideal for demanding applications, especially in the field of mobile machinery.
POOCCA Hydraulics is a powerful hydraulic enterprise integrating R&D, manufacturing, sales and maintenance. Its products are exported to more than 120 countries. Its quality, price and service are deeply recognized and trusted by customers.
