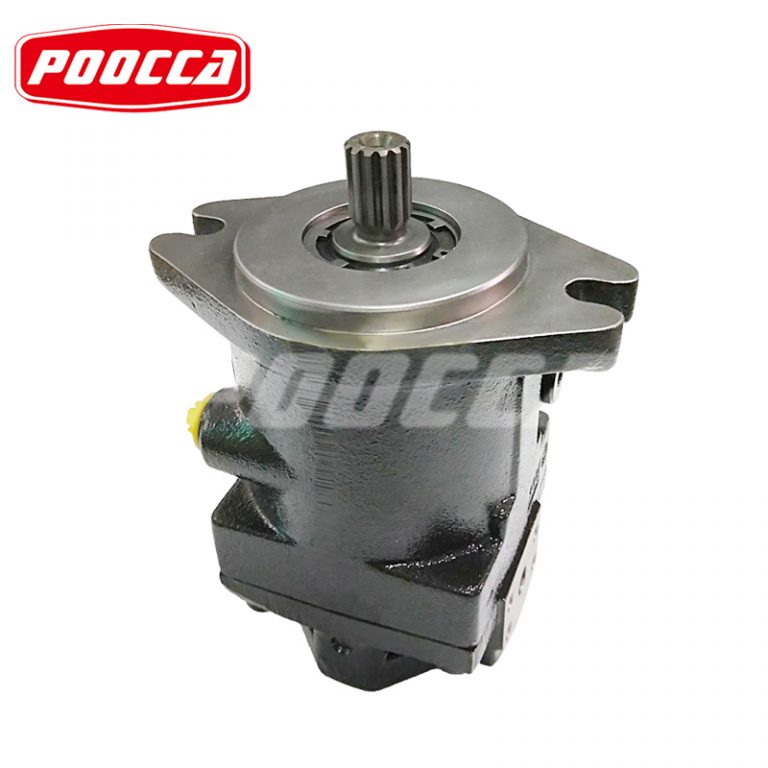

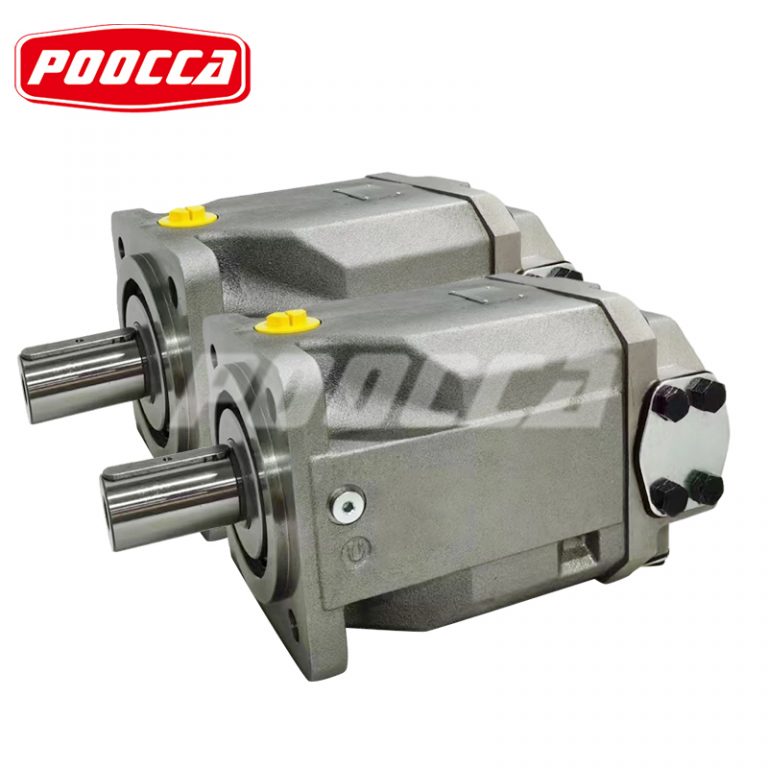

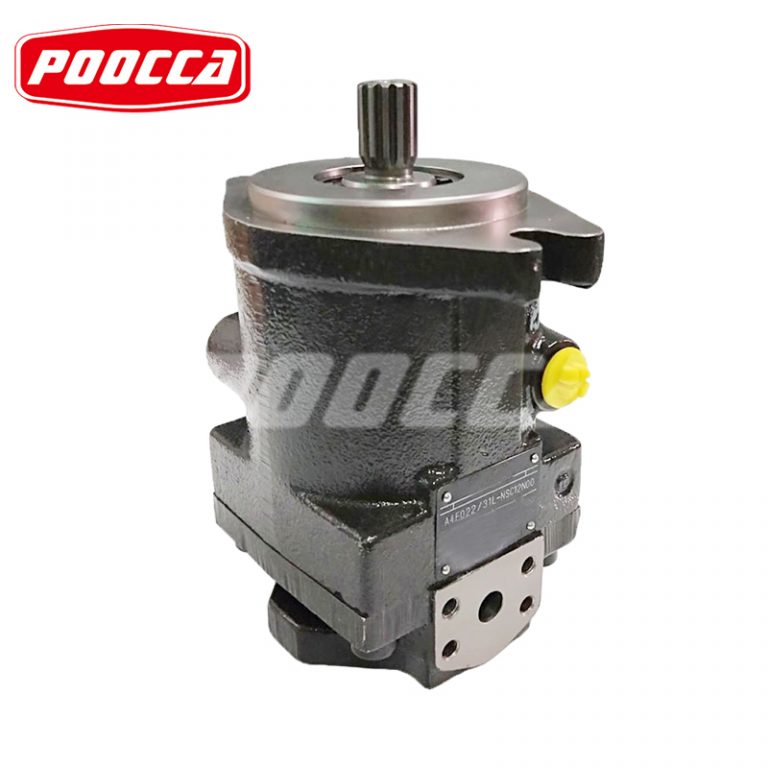

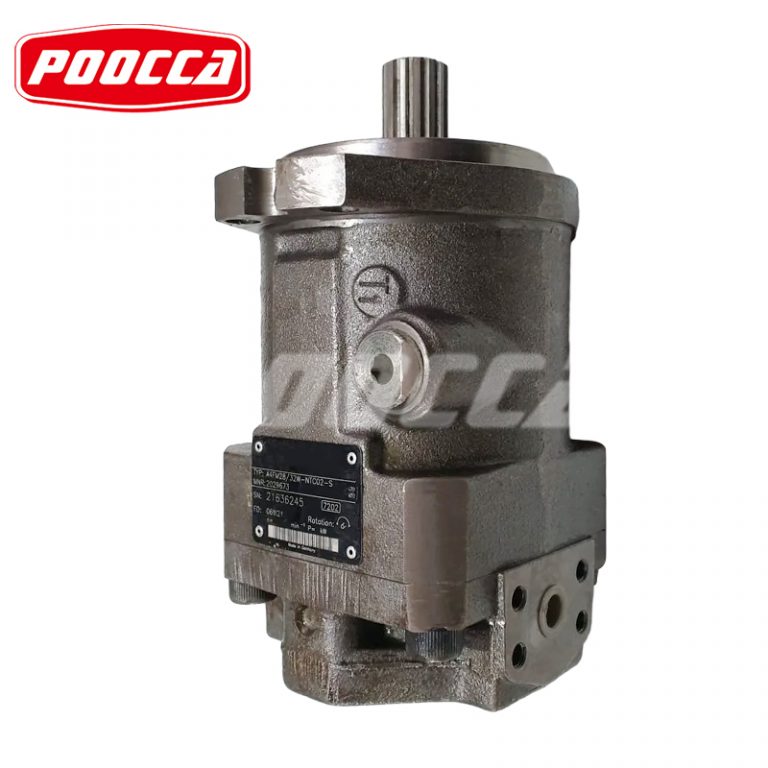

Rexroth A4FM Piston Motor

A4FM Sizes 22…500
Series 1, Series 3
Nominal pressure up to 400 bar
Peak pressure up to 450 bar
Welcome to send your requirements to poocca hydraulic manufacturer, we will provide you with preferential prices and high-quality products as soon as possible.

Characteristic

Design and Application: Rexroth A4FM axial piston fixed displacement motors feature a swashplate design and are ideally suited for open and closed loop circuits in hydrostatic drives. The motor’s output speed is directly related to the input flow and inversely proportional to the displacement.

Performance: Increasing the pressure drop across the motor allows for a smooth transition from high to low pressure, which results in increased output torque. Rexroth A4FM piston motors are renowned for their long service life and optimum efficiency, ensuring reliable performance in a wide range of applications.

Versatility and Reliability: The compact design of the A4FM motors makes them particularly suitable for specialist applications where the A2FM models may not be an ideal choice. They feature a robust rotating group with swashplate technology, ensuring long-term reliable operation.

A4FM Piston Motor Parameter

A4FM Piston Pump Size:A4FM22,A4FM28,A4FM40,A4FM56,A4FM71,A4FM125,A4FM250,A4FM500

Size 22 28 40 56 71 125 250 500
Displacement Vg ย  cm3 22 28 40 56 71 125 250 500
Max. speed nmax continuous rpm 4250 4250 4000 3600 3200 2600 2200 1800
nmax interm.1) rpm 5000 5000 5000 4500 โ€“ โ€“ โ€“ โ€“
Max. flow (at nmax) qV max L/min ย ย  93 119 160 202 227 325 550 900
Torque constants TK Nm/bar 0,35 0,445 0,64 0,89 1,13 1,99 3,97 7,95
Torque (at ฮ”p = 400 bar) Tmax ย Nm 140 178 255 356 3952) 6962) 13912) 27832)
Filling volume L 0,3 0,3 0,4 0,5 2,0 3,0 7,0 11,0
Moment of inertia
about drive axis
J kgm2 ย  ย 0,0015 0,0015 0,0043 0,0085 0,0121 0,0300 0,0959 0,3325
“Actual starting torque
at n = 0 rpm (ฮ”p = 350 bar)”
Nm (approx.) 320 564 1127
Weight (approx.) m kg 11 11 15 21 34 61 120

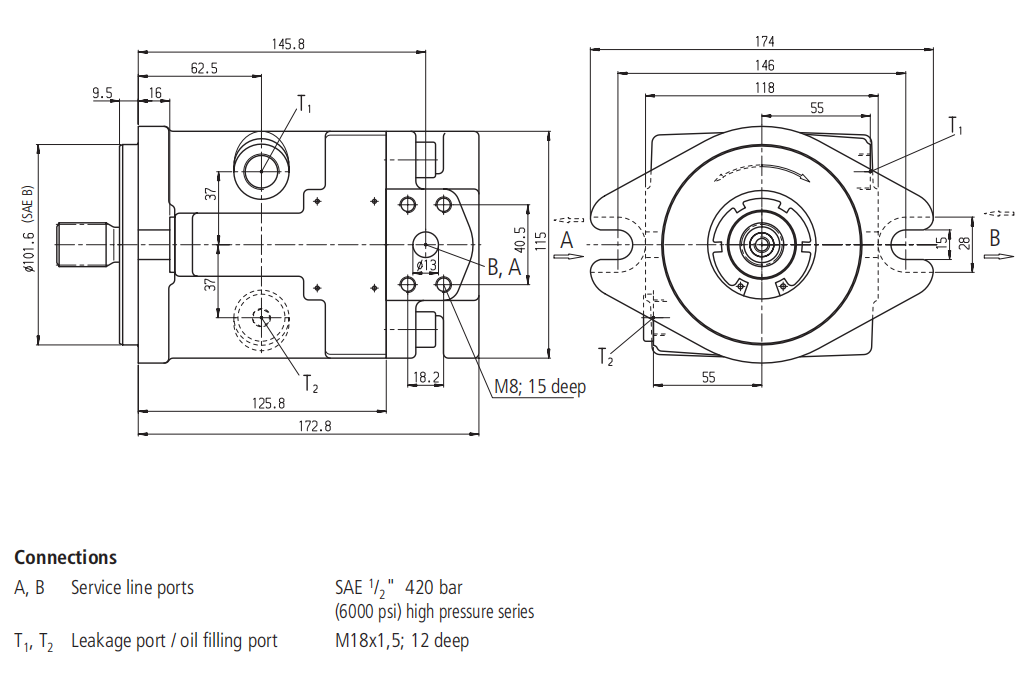

Dimension

Rexroth A4FM Piston Motor

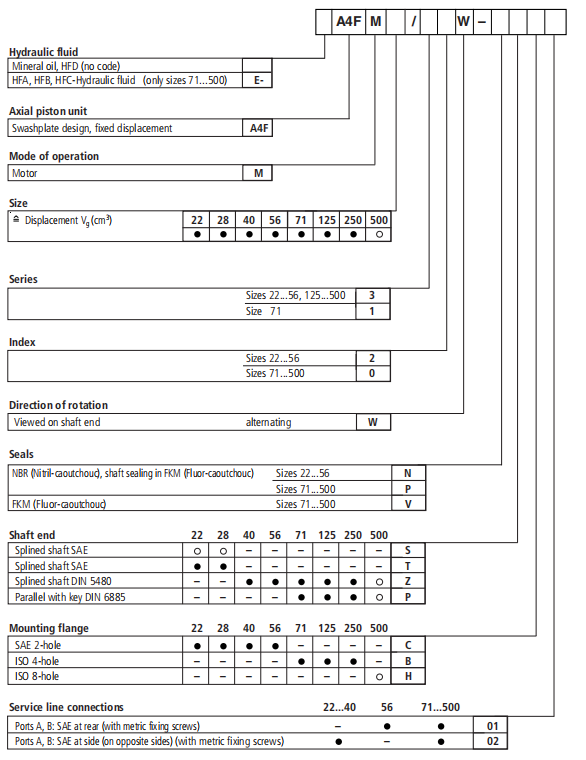

Order Code

Rexroth A4FM Piston Motor

Application

Designed for high-pressure applications, the Bosch Rexroth A4FM axial piston fixed displacement motor features a swash plate design that is ideal for both open and closed-loop hydraulic circuits. Its output speed is proportional to the input flow and inversely proportional to the motor displacement, while torque increases as the voltage drops from the high-pressure side to the low-pressure side.

The versatility of this motor lies in its compact installation dimensions, making it suitable for use in a variety of industries such as construction, agriculture and manufacturing. The correlation between torque output and voltage drop increases operational flexibility, allowing precise control under a wide range of operating conditions as required.

The A4FM motor embodies Bosch Rexroth’s commitment to efficient hydraulic solutions, combining a robust design with dynamic performance characteristics that are essential for optimizing space and ensuring reliable operation in demanding applications.

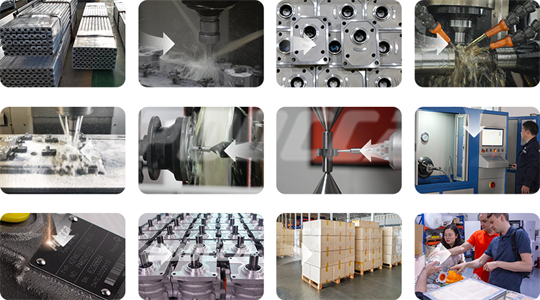

About POOCCA

POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997. As a provider of hydraulic solutions, we focus on the research, development, manufacturing, maintenance and distribution of hydraulic products such as pumps, motors, valves and related components. With decades of experience serving hydraulic system users around the world, we have built a strong reputation in the industry.

Over the past two decades, POOCCA Hydraulics has demonstrated continued growth and innovation in the field of hydraulics. Our commitment earns the trust of domestic and international manufacturers and fosters strong corporate partnerships. The annual export volume exceeds 16 million US dollars, and our products are sold to more than 100 countries around the world. We are proud of our long-standing, committed relationships with dealers in more than 75 countries, including important markets such as the United States, Indonesia, Mexico, Thailand, Russia and Brazil.
