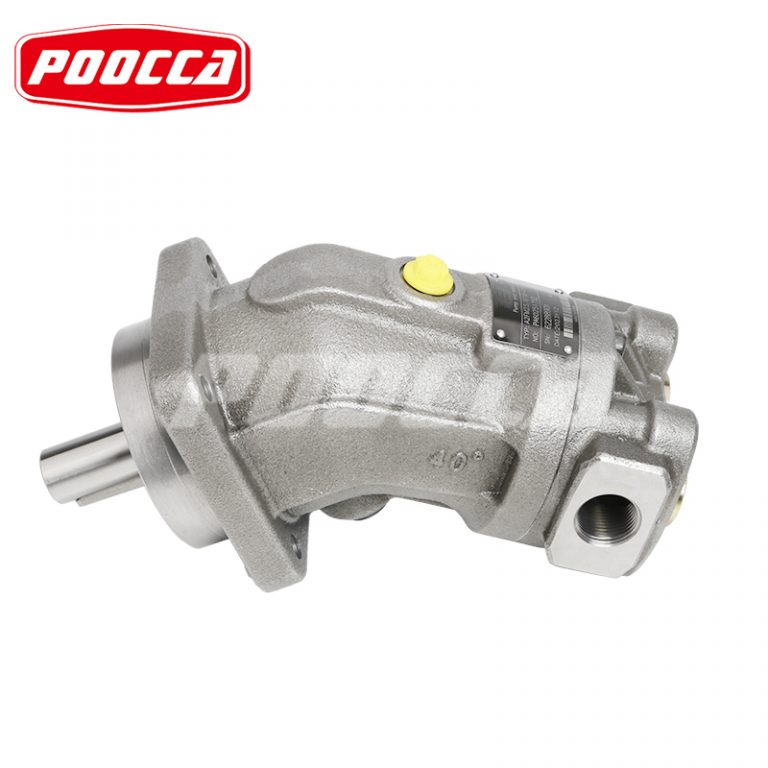

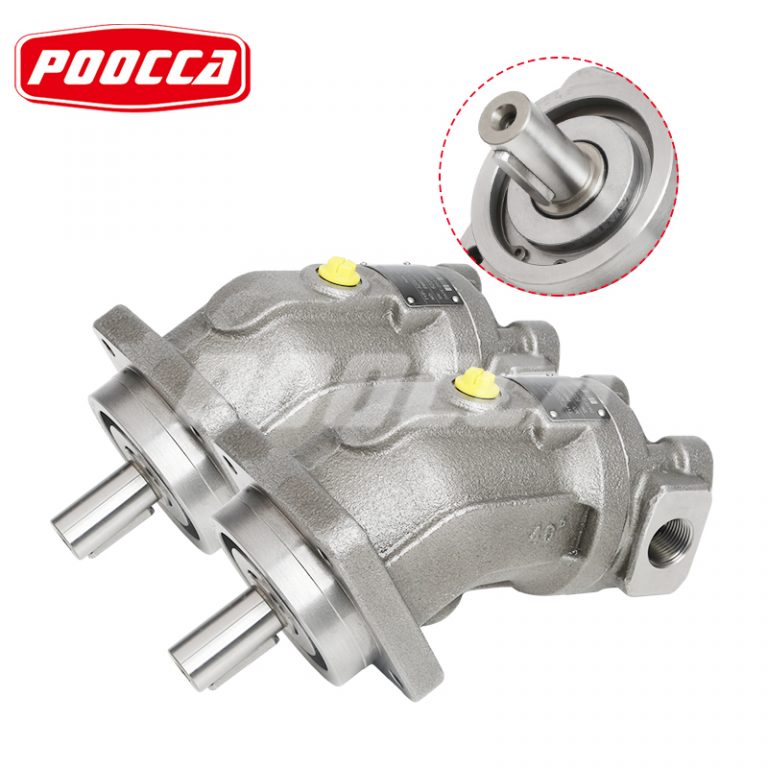

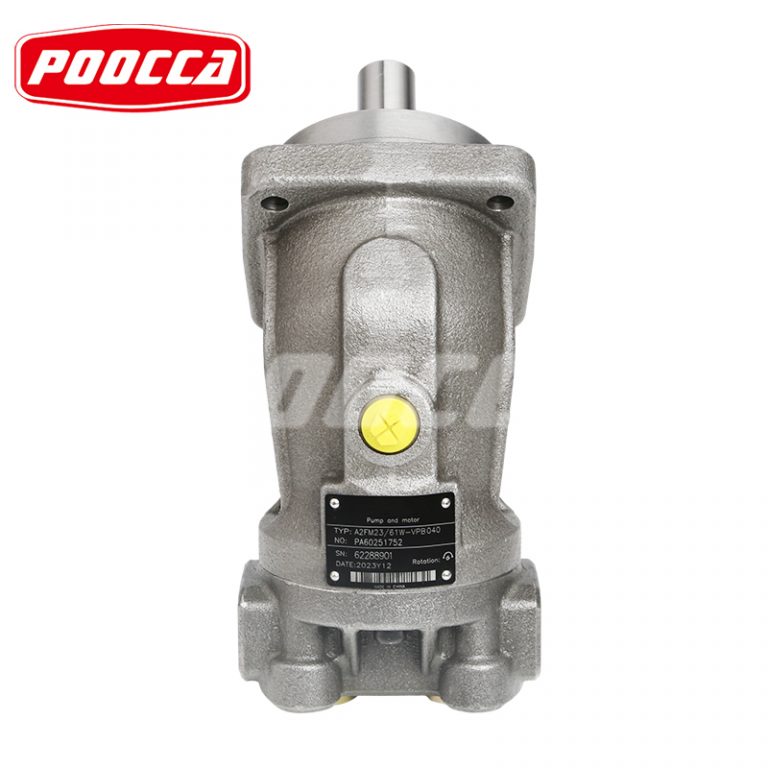

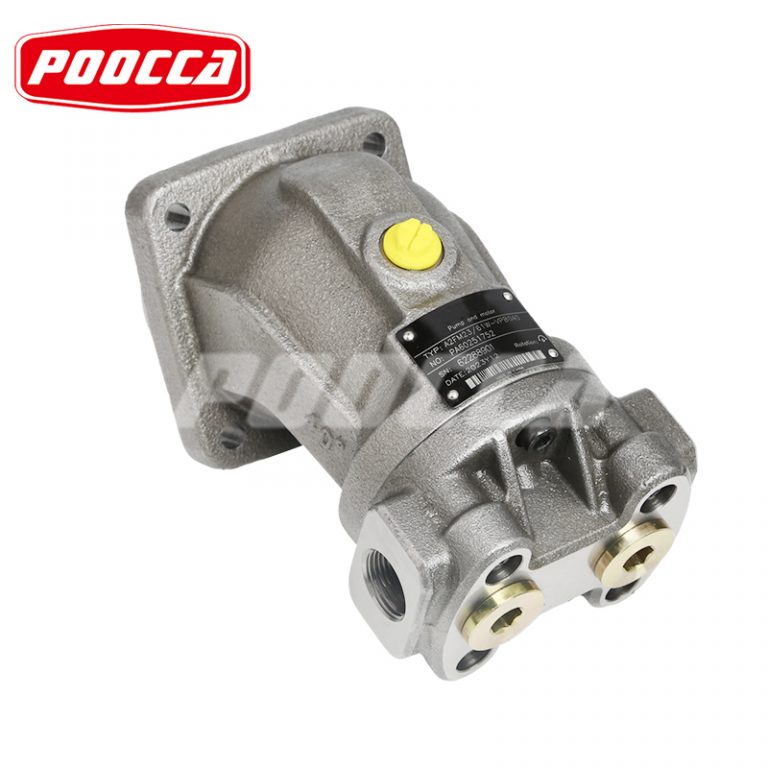

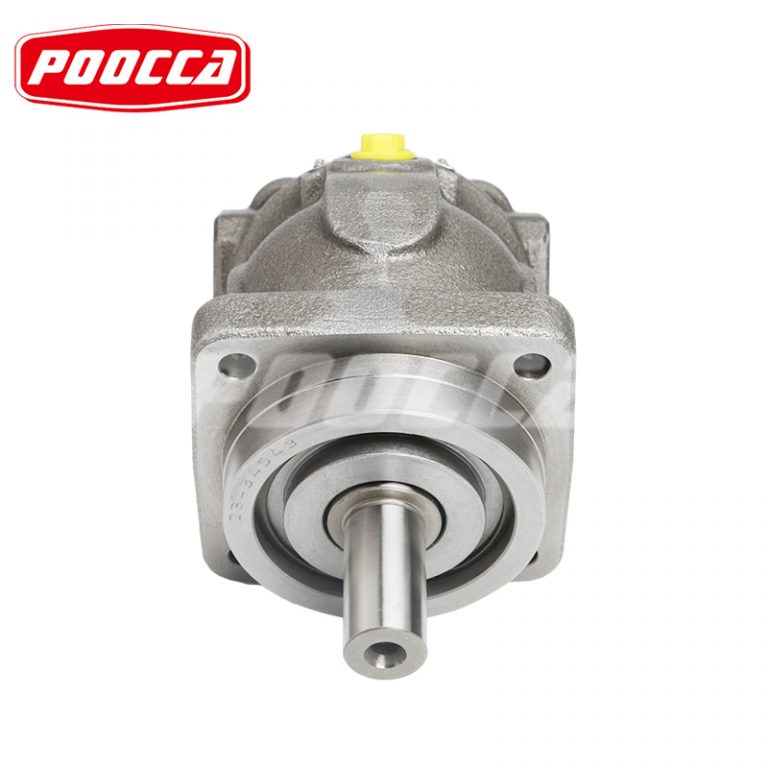

A2FM Rexroth Piston Motor

Sizes:5,10,12,16,23,28,32,45,56,63,80,90,107,125,160,180,200,250,355,500,710,1000cc/rev

Nominal Pressure:400 bar

Maximum Pressure:450 bar

Operation Mode:Open and Closed Circuit

Chat Now

A2FM Rexroth Piston Motor

Characteristic

5 Size,Nominal pressure:315bar,Maximum pressure:350bar
10-200 Size,Nominal pressure:400bar,Maximum pressure:450bar
250-1000 Size,Nominal pressure:350bar,Maximum pressure:400bar

– Fixed-displacement motor with axially tapered piston rotor set in oblique shaft design for hydrostatic transmission in open and closed circuits

– For mobile machinery and stationary applications

–A2FM Rexroth Piston Motor Output speed depends on pump flow and motor displacement.

– The output torque increases with the differential pressure between the high-pressure side and the low-pressure side.

– Precisely scaled dimensions can be adjusted to suit the drive

–Hydraulic motors have high power density

– Small size, high overall efficiency

– Good starting characteristics, economical design

– One-piece tapered plunger with sealing plunger ring

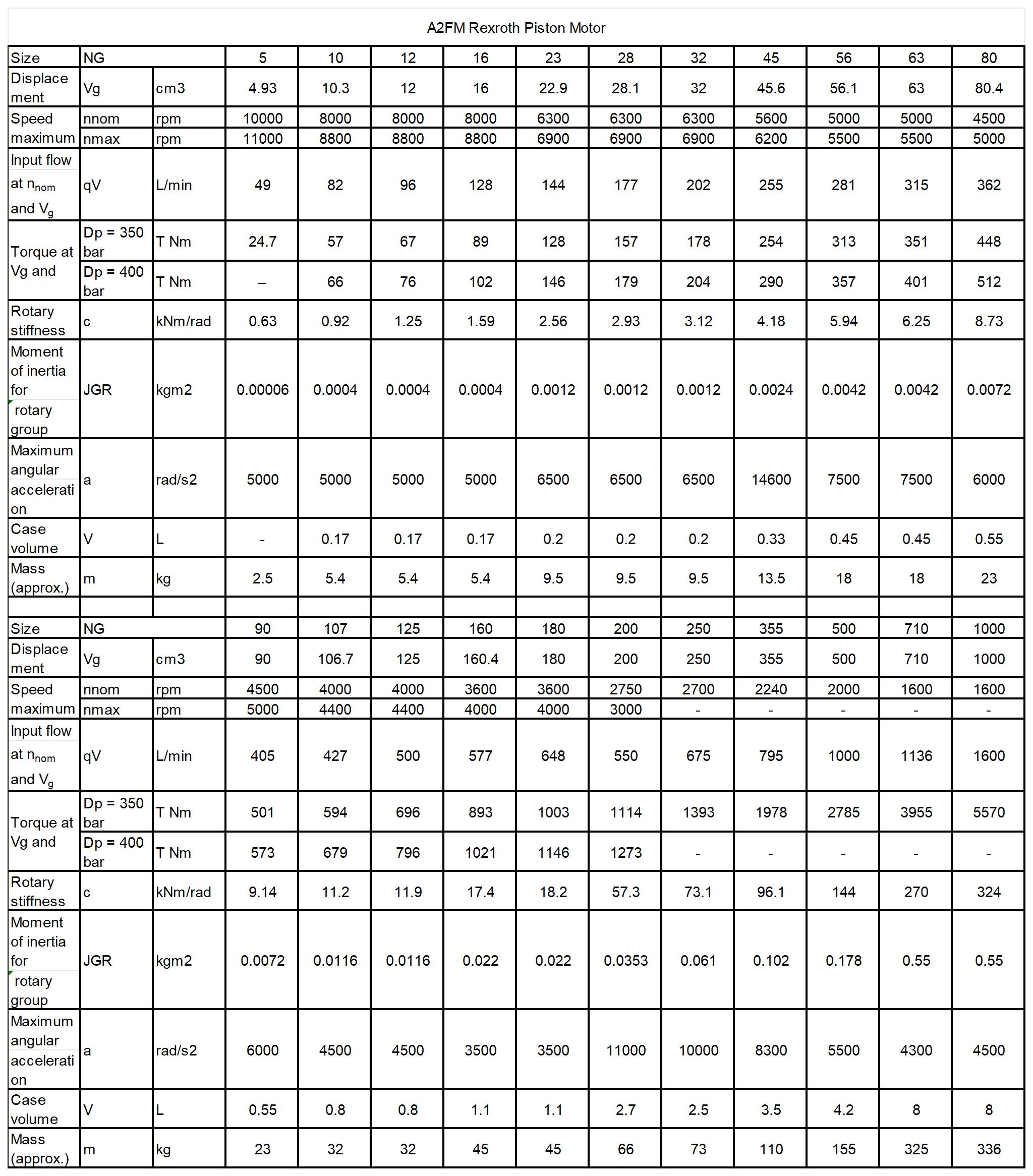

Parameter

A2FM Series：

A2FM5,A2FM10,A2FM12,A2FM16,A2FM23,A2FM28,A2FM32,A2FM45,A2FM56,A2FM63,A2FM80,A2FM90,A2FM107,A2FM125,A2FM160,A2FM180,A2FM200,A2FM250,A2FM355,A2FM500,A2FM710,A2FM1000

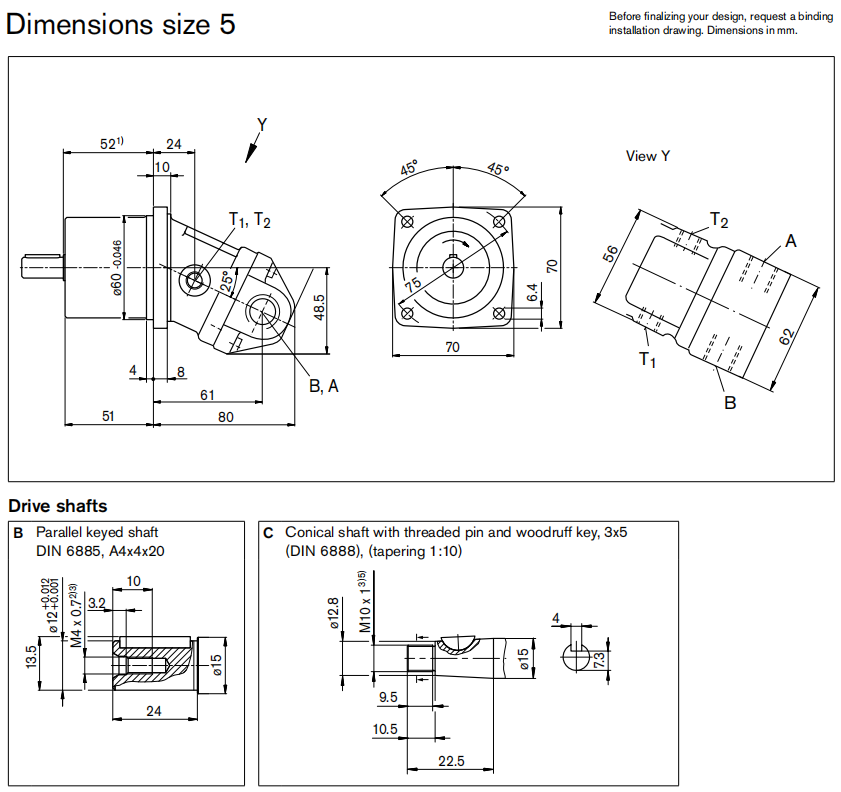

A2FM Rexroth Piston Motor Dimension

If you need dimensional drawings of other models, please contact poocca.

Customer Feedback

POOCCA adheres to the sales attitude of focusing on quality, customer first, and seeking development through service, and always adheres to the purpose of abiding by contracts and keeping promises.

Custom Made

POOCCA hydraulic manufacturer supports customization of special models, including packaging and nameplate customization
