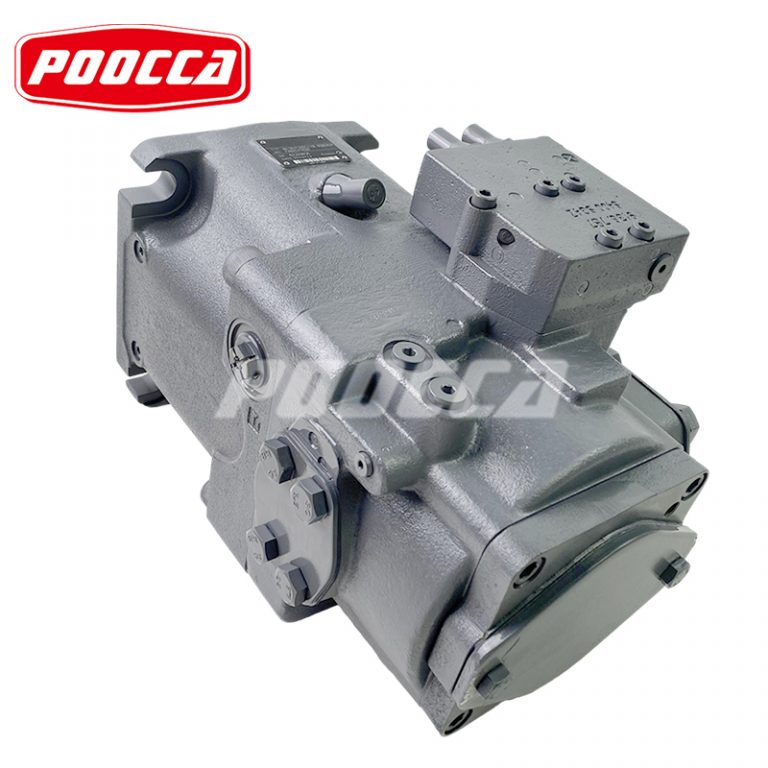

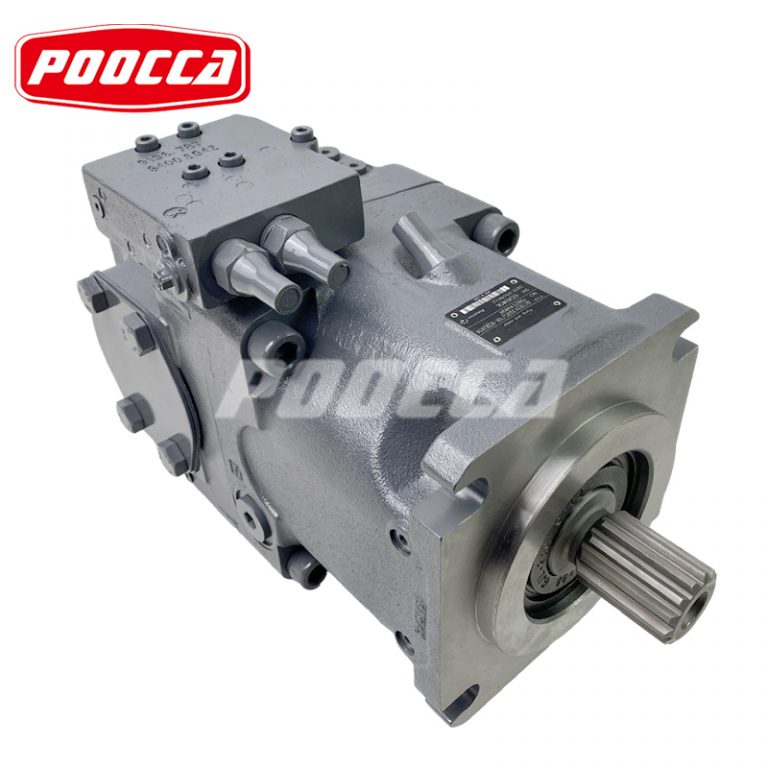

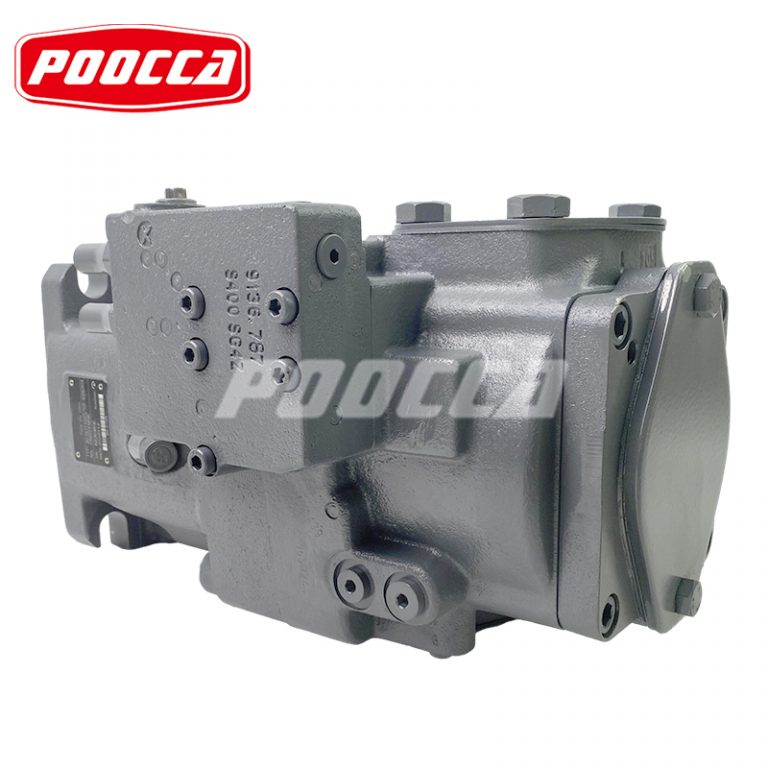

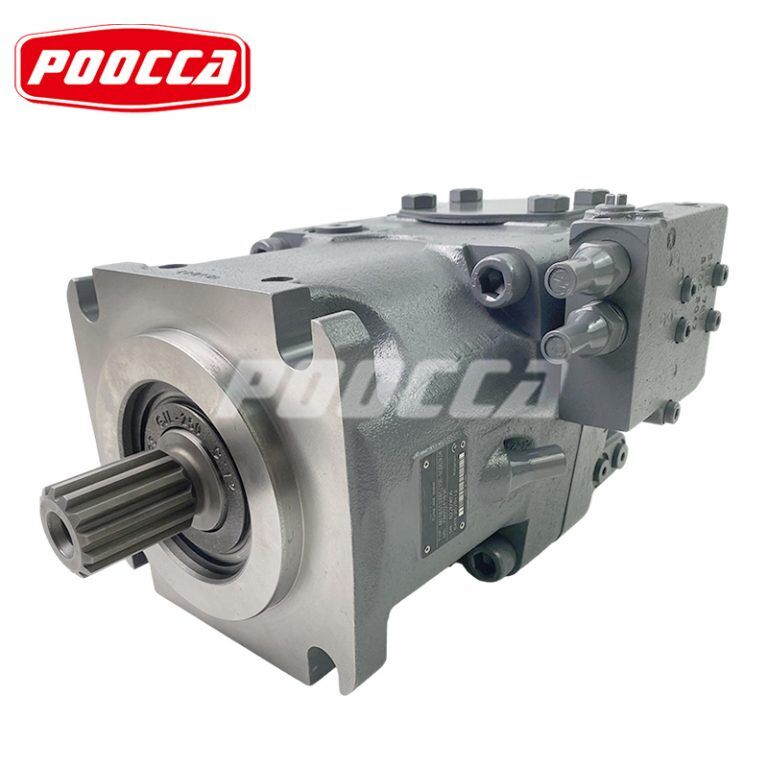

**The A11VLO is a variable displacement axial piston pump with a swashplate design designed for hydrostatic drive in open circuit hydraulic systems.
**Designed specifically for mobile applications and excels at delivering reliable hydraulic power.
**Operating under self-priming conditions or with the optional built-in charge pump ensures efficient tank pressurization.
**A11VLO offers a wide range of control options to easily meet different application needs.
** Its power control options are externally adjustable, allowing fine-tuning even during operation.
**Adopts through-shaft drive, seamlessly integrating gear pump and axial piston pump, providing 100% through-shaft drive.
**The output flow rate of the A11VLO piston pump varies infinitely between maximum and minimum values, directly related to drive speed.
| A11VLOย Hydraulic Piston Pump | ||||||
| Size | A11VLOย Pump | 130 | 145 | 190 | 260 | |
| Displacement | Vg max | cm3 | 130 | 145 | 193 | 260 |
| Vg min | cm3 | 0 | 0 | 0 | 0 | |
| Speed | nmax | rpm | 2500 | 2500 | 2500 | 2300 |
| maximum at Vg max | ||||||
| maximum at Vg ยฃ Vg max | ||||||
| nmax1 | rpm | 2500 | 2500 | 2500 | 2300 | |
| Flow | qv max | l/min | 325 | 363 | 483 | 598 |
| at nmax and Vg max | ||||||
| Power at | Pmax | kW | 190 | 211 | 281 | 281 |
| qv max and ฮp = 350 bar | ||||||
| Torque at | Tmax | Nm | 724 | 808 | 1075 | 1448 |
| Vg max and ฮp = 350 bar | ||||||
| Rotary stiffness | Z shaft | Nm/rad | 302495 | 302495 | 346190 | 686465 |
| P shaft | Nm/rad | 312403 | 312403 | 383292 | 653835 | |
| S shaft | Nm/rad | 236861 | 236861 | 259773 | 352009 | |
| T shaft | Nm/rad | โ | โ | 301928 | 567115 | |
| Moment of inertia | JTW | kgm2 | 0.0337 | 0.036 | 0.0577 | 0.0895 |
| for rotary group | ||||||
| Angular | a | rad/s2 | 10500 | 9000 | 6800 | 4800 |
| acceleration, max. | ||||||
| Filling capacity | V | l | 2.9 | 2.9 | 3.8 | 4.6 |
| Mass (approx.) | m | kg | 72 | 73 | 104 | 138 |
Puka Hydraulic (Shenzhen) Co., Ltd. focuses on the research and development, manufacturing, maintenance and sales of hydraulic equipment, serving various industries around the world. Main business: gear pumps, piston pumps, vane pumps, motors, hydraulic valves, hydraulic accessories, etc.
POOCCA’s annual export volume reaches US$16 million and is exported to more than 100 countries such as the United States, Indonesia, Mexico, Thailand, Russia, and Brazil, and maintains long-term partnerships around the world. Its 8,000 square meter factory is equipped with advanced manufacturing technology to produce hydraulic products used in construction, agriculture, metallurgy and other fields.
