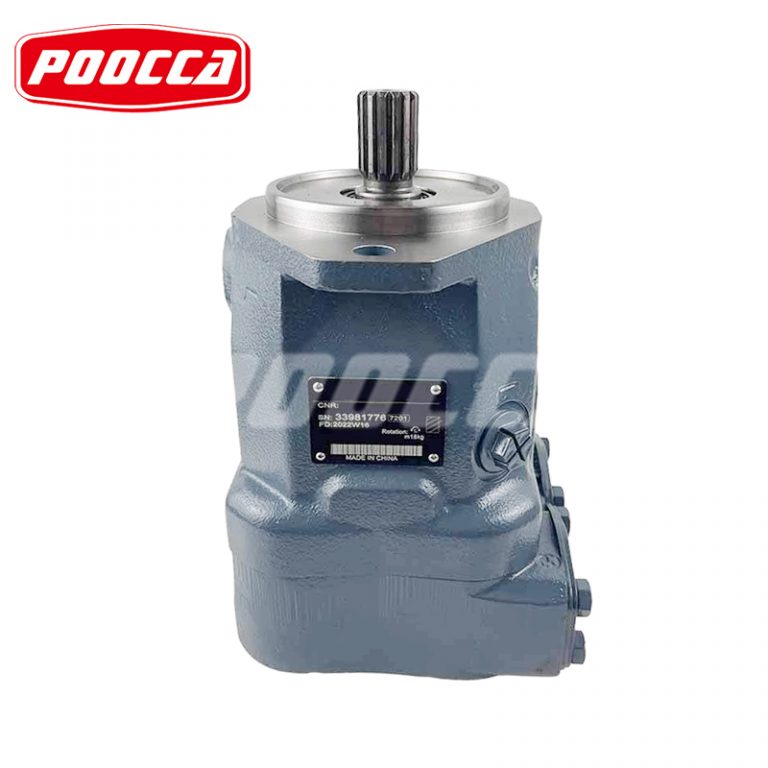

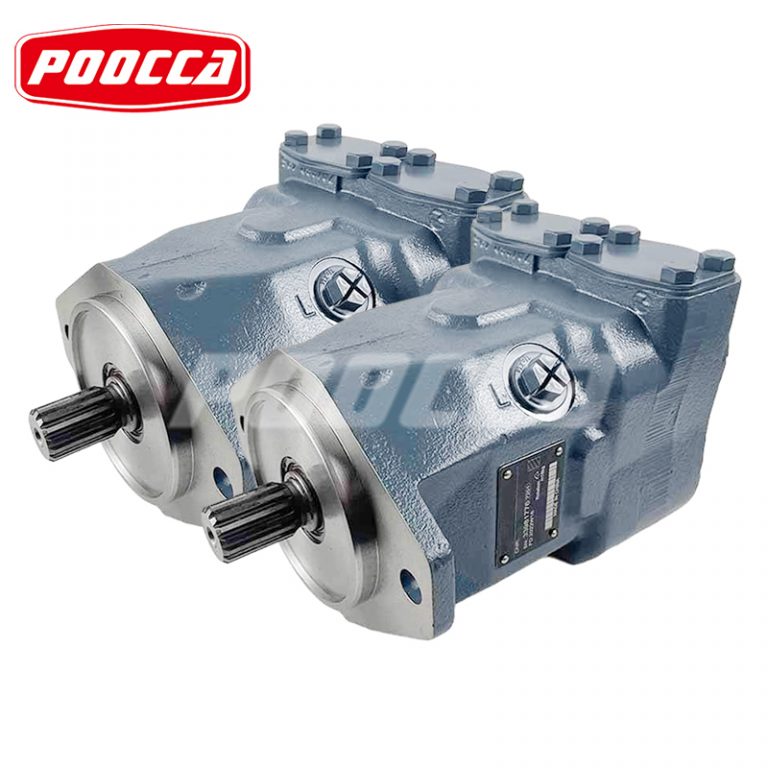

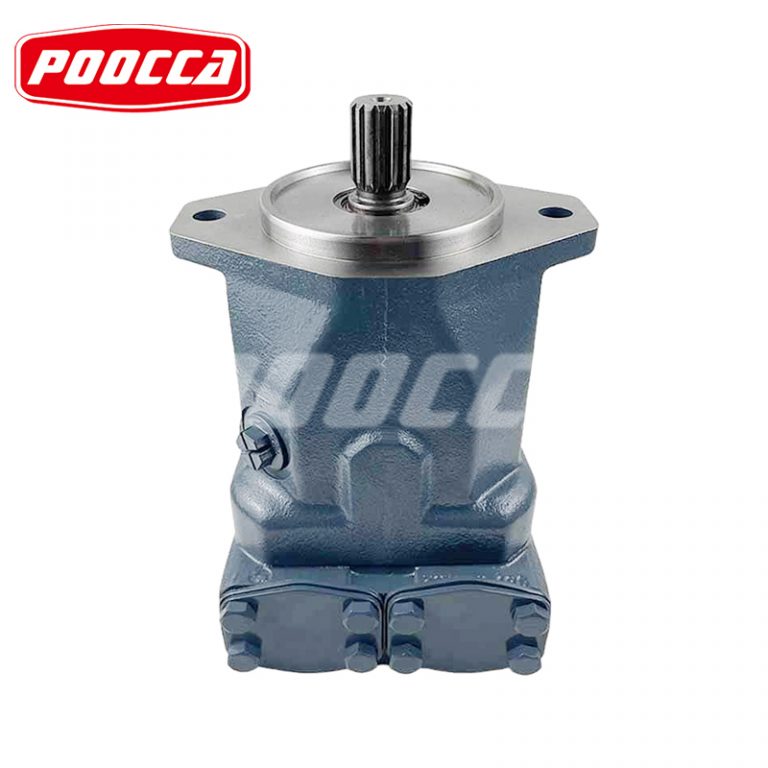

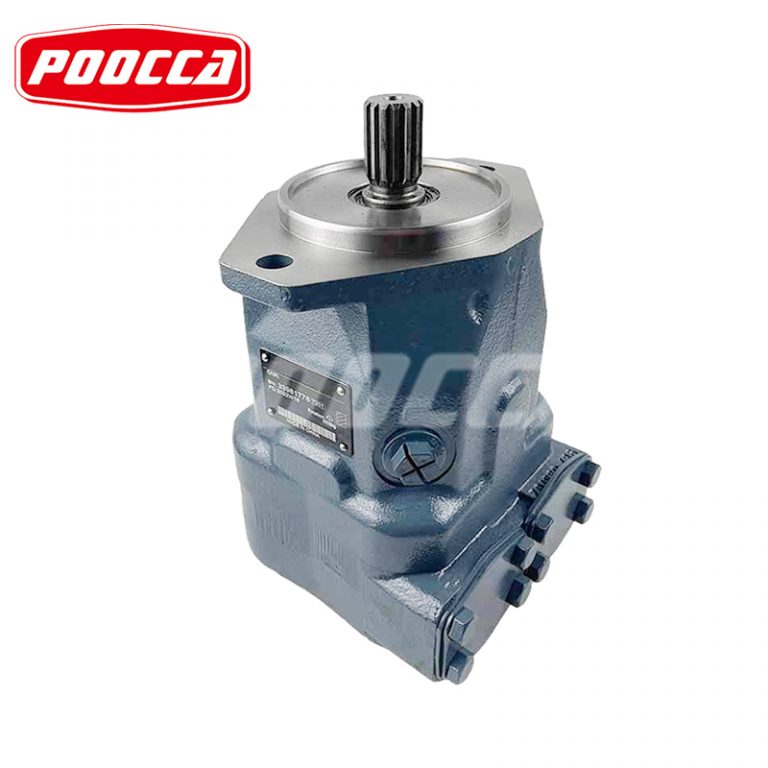

A10FM Fixed Displacement Motor

A10FM Size 10…63(10,11,14,16,18,23,28,37,45,58,63)

Nominal pressure 280 bar

Peak pressure 350 bar

Open and closed circuit

Chat Now

Characteristic

Versatile Hydrostatic Transmission: The Rexroth A10FM motor is designed with a swash plate configuration for hydrostatic transmission and is suitable for both open and closed circuit scenarios.

Performance dynamics: Output speed is related to inlet flow, while output torque increases with the pressure gradient between the high- and low-pressure sides.

Wide range of applications: suitable for mobile and industrial applications, with long service life and high allowable output speed.

Compact and efficient design: The A10FM fixed displacement motor features the proven A10 rotary group, high power-to-weight ratio, installation space-saving plug-in version, low noise level and adheres to SAE standards for mechanical and hydraulic connections. Optional integrated anti-cavitation valve for specific applications such as fan drives.

Parameter

A10FM Size :A10FM10,A10FM11,A10FM14,A10FM16,A10FM18,A10FM23,

A10FM28,A10FM37,A10FM45,A10FM58,A10FM63

Size				10	11	14	16	18	23
Displacement		V	cm3	10,6	11,5	14,1	16,1	18	23,5
Displacement		g max	cm3	10,6	11,5	14,1	16,1	18	23,5
Speed2) max. at Vg max		n0 max	min-1	5000	4200	4200	4200	4200	4900
Inlet ﬂow
at n0 max		qV0 max	L/min	53	48	59	68	76	115
Power at n0 max	Δp = 280 bar	Po max	kW	24,7	22,5	27,6	31,6	35,3	53,6
Torque at Vg max	Δp = 280 bar	Tmax	Nm	47	51	63	72	80	105
Moment of inertia (about drive axis)		J	kgm2	0,0006	0,00093	0,00093	0,00093	0,00093	0,00017
Actual starting torque
at n = 0 min-1 Δp = 280 bar			Nm	37,5	30	45	53	67,5	75
Angular acceleration, max.			rad/s2	8000	6800	6800	6800	6800	5500
Torsional stiffness Shaft R			Nm/rad	–	–	–	–	14835	28478
Shaft W			Nm/rad	–	–	–	–	–	–
Shaft C			Nm/rad	15084	18662	18662	18662	18662	30017
Case volume			L	0,1	0,15	0,15	0,15	0,15	0,6
Weight		m	kg	5	6,5	6,5	6,5	6,5	12


Size					28	37	45	58	63
Displacement			V	cm3	28,5	36,7	44,5	58	63,1
Displacement			g max	cm3	28,5	36,7	44,5	58	63,1
Speed2)
max. at Vg max			n	min-1	4700	4200	4000	3600	3400
			0 max
Inlet ﬂow
at n0 max			qV0 max	L/min	134	154	178	209	215
Power
at n0 max	Δp = 280 bar		Po max	kW	62,5	71,8	83,1	97,4	100,1

Torque at Vg max	Δp = 280 bar		Tmax	Nm	127	163	198	258	281
Moment of inertia			J	kgm2	0,00017	0,00033	0,00033	0,0056	0,0056
(about drive axis)			J	kgm2	0,00017	0,00033	0,00033	0,0056	0,0056
Actual starting torque at n = 0 min-1 Δp = 280 bar				Nm	105	125	170	205	230
Angular acceleration, max.				rad/s2	5500	4000	4000	3300	3300
Torsional stiffness		Shaft R		Nm/rad	28478	46859	46859	80590	80590
		Shaft W		Nm/rad	–	38489	38489	60907	60907
		Shaft C		Nm/rad	30017	46546	46546	87667	87667
Case volume				L	0,6	0,7	0,7	0,8	0,8
Weight			m	kg	12	17	17	22	22

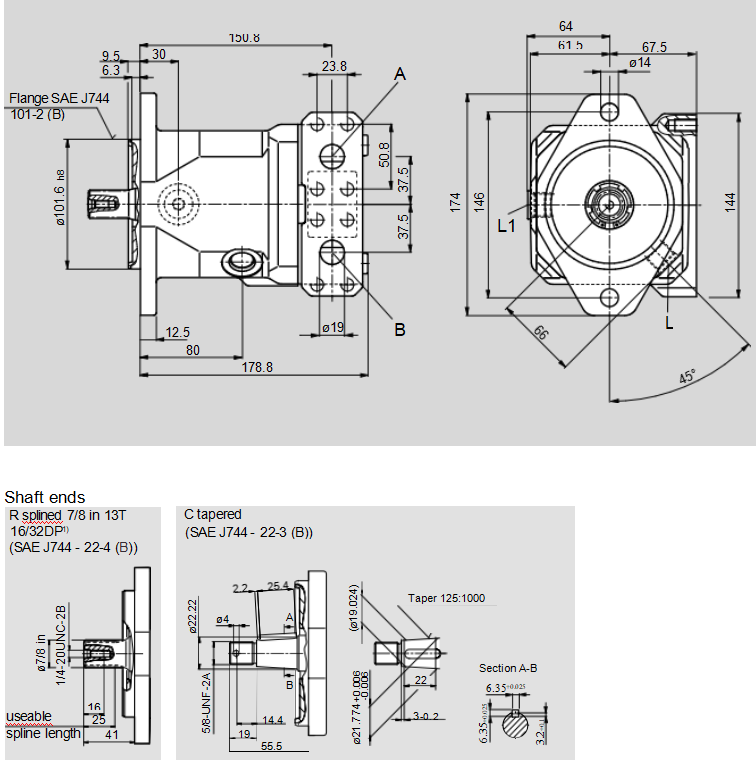

A10FM Fixed Displacement Motor Dimension
