An axial piston pump is a kind of positive displacement pump that contains a number of pistons which are axially placed in the cylinder block to develop hydraulic power. They have high efficiency, robust construction, and high-pressure capability, finding great applications in both industrial and mobile applications.
An axial piston pump is a truly outstanding actuator, as here mechanical energy changes into hydraulic in the form of pressurised fluid flow with incredibly high efficiency; just because the shaft rotates. This makes them immensely suitable for all heavy-duty hydraulic systems where even a slight mishap can hamper the job, and more importantly, that precision and dependability are involved.

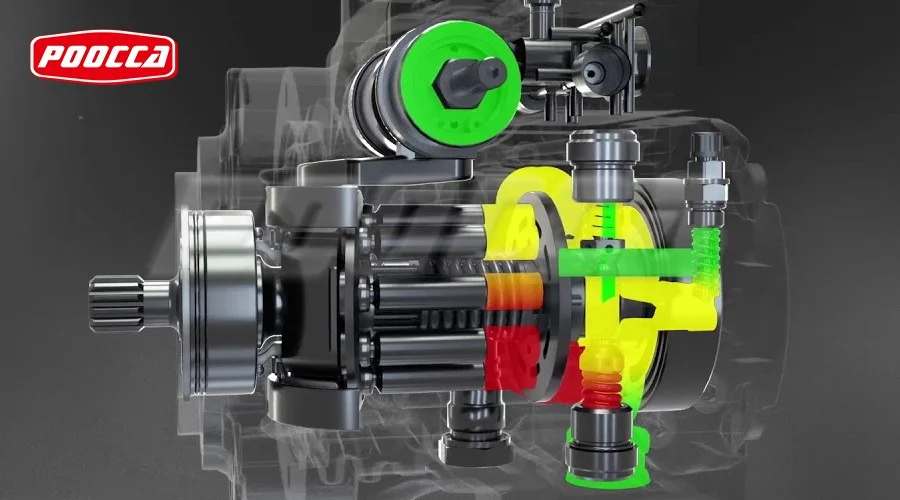

How do Axial Piston Pumps Operate?
Axial piston pumps are comparable to every other version because the operational foundation depends on reciprocation by pistons but differently arranged for output. In fact, the body of the pump has the form of a cylindrical block housing various pistons with annular structures that encase the central driving shaft. The drive shaft turning transfers the motion to the cylinder block and axially reciprocates the pistons. Axial motion of the pistons, combined with appropriately positioned inlet and outlet ports, creates a continuous flow of pressurized fluid. To understand exactly how an axial piston pump works, the process can be broken down into four stages:
- Intake:In this stage, when the pistons move backward, they create a vacuum in their respective chambers. This vacuum sucks hydraulic fluid from the reservoir through the inlet port and into the cylinder block.
- Compression:The pistons, in their rotation of the cylinder block, compress towards a valve plate or a deflected axis, thereby decreasing the volume in the chambers. This compression generates fluid pressure built up inside the chambers.
- Power:As soon as fluid pressure exceeds the opening pressure of the outlet valve, the compressed fluid is forced out of the cylinder block through the outlet port.
- Exhaust:With the pistons continuously turning round and round, it positions towards that area in space, where distance is maximal between it and the valve plate, this then dilates the space. Space has readied its second stage intake and the cycle is going round in a cycle after a cycle.
What Are the Different Types of Axial Piston Pumps?
Based on the principle of how the displacement is controlled, there are two varieties of axial piston pumps; that is fixed displacement and variable displacement pumps.
Fixed Displacement Axial Piston Pumps
Fixed displacement pumps are those in which the volume of fluid discharged with each rotation of the drive shaft is fixed independent of the pressure or load imposed by the system. The discharge flow varies in direct proportion with the rotational speed of the drive shaft. They are normally used in applications in which there is a demand for a fixed discharge flow rate. This would be simple hydraulic circuits and powering constant speed motors.
Variable Displacement Axial Piston Pumps
Variable displacement pumps are even more flexible since pump operation can accommodate varying output flow rate. Pumps change the stroke length of these pumps through altering the swashplate angle or bent axis, thereby modifying the pistons’ stroke lengths and fluid being displaced per revolution. Variable displacement pumps are indispensable in applications requiring precise flow control, such as complicated hydraulic systems or for driving variable-speed motors. In systems where fluctuating demand prevails, they grant energy economy with quick response.
What Are Axial Piston Pumps Used For?
Axial piston pumps enjoy a wide spread in both the mobile and industrial fields due to their versatility and high performance.
Axial Piston Pumps for Mobile Applications
Axial piston pumps are common to many applications in the mobile segment for their durability and efficiency. An example here would be to an excavator. The swings used to make the excavator house turn on and power such other hydraulic works as the swinging boom and boom-and-arm are run by an axial piston pump.
In the wheel drive systems, an axial piston pump plays a vital role in hydrostatic transmission for power transmission in vehicles requiring high traction demands. Their rugged construction with demonstrated performance also makes them most suitable for application in high speeds in marine applications, as in marine hydroplanes, where even reliability is demanded.
These pumps power hydraulic systems in tractors, harvesters, and many machines in agriculture. They are also used in log loaders and feller bunchers in forestry equipment. Axial piston pumps can provide more than enough power and control for timber handling under the heaviest of environmental conditions.
Industrial Applications for Axial Piston Pumps
Axial piston pumps are part of many applications in industry because they can offer high performance and precision. For example, in hydraulic presses, the pumps are indispensable because they can develop the high pressures required in pressing and forming operations.
Axial piston pump supplies hydraulic power in a controlled and exact manner to the injection and clamping mechanisms of injection molding machines. It makes it possible to supply hydraulic-power drive to machinery hydraulic systems visible in the metals involving lattes, milling machines, and grinders, where motions of tools are driven while their positions are controlled with high accuracy.
Axial piston pumps are also used in material handling equipment, such as forklifts and cranes. These machines use hydraulic power to lift, lower, and move heavy loads and are indispensable in industries that mainly rely on the lifting and moving of materials.
Why Are Axial Piston Pumps Preferred Over Other Types of Pumps?
Axial piston pumps have several advantages over other types of hydraulic pumps that make them preferred in most applications:
High Efficiency of Axial Piston Pumps
The axial piston pump is the key feature in which high volumetric and total efficiency exist. The friction and internal leakage loss is also reduced. Therefore, the wastage of energy utilized in the process is reduced. Wastage of energy indicates that the power output is low. Hence, due to this reason, the reduced cost of operation enhances. Generally, axial piston pumps are expensive if viewed in the long term
High Pressure Capability of Axial Piston Pumps
Axial piston pumps are capable of handling extremely high pressures, making them suitable for demanding applications where other pump types might not suffice. This high-pressure capability enables them to power heavy-duty equipment and perform tasks requiring significant force.
Compact Design of Axial Piston Pumps
Compared to pumps of similar axial and pressure capacity, an axial piston pump has relatively compact dimensions. This compactness makes them perfect for installations in locations where there is limited room space, hence increasing flexibility in systems design.
Variable Displacement Option of Axial Piston Pumps
The most important benefit of variable displacement is that it offers better control and flexibility to hydraulic systems. In the case of variable displacement axial piston pumps, the flow rate can be changed according to demand. It ensures that performance is optimal and energy consumption will depend upon the application.
Low Noise Operation of Axial Piston Pumps
Axial piston pumps are less noisy than other types of pumps, including gear pumps. This is an advantage for noise-sensitive environments, and it allows operators to operate in a relatively comfortable environment for mobile applications.

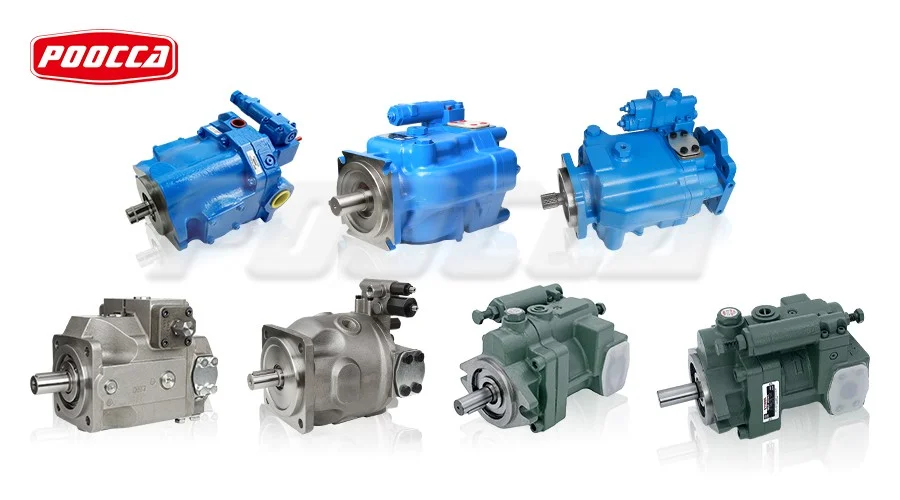

POOCCA Hydraulics: Your One-Stop Shop for High-Quality Axial Piston Pumps
POOCCA Hydraulics is one of the major manufacturing companies and distributors of hydraulic parts, especially in the large-sized axial piston pumps. After more than two decades in this industry, POOCCA Hydraulics adheres to a philosophy of excellence by providing good, reliable hydraulic solutions to customers everywhere in this world.
POOCCA axial piston pumps are designed and manufactured to meet the most demanding requirements of the industry concerning performance, efficiency, and life expectancy. Be it a simple hydraulic system for which customers demand a fixed displacement pump or even the most complex applications that demand variable displacement pumps, POOCCA can fulfill all of their demands.
POOCCA has axial piston pump options that fit wide ranges in their product portfolio, catering to specific requirements of specific application demands. In this light, they even offer axial pumps from a large number of globally recognized firms. POOCCA offers quality over a rational range for the price-axial pistons-meaning that without a loss in the value and excellence that the value would possess on their pistons.
POOCCA Hydraulics is your trusted partner for all your axial piston pump needs. Contact them today to learn more about their products and how they can help you optimize your hydraulic system.
