What are Hydraulic Vane Pumps
Hydraulic vane pumps are the backbone of the majority of hydraulic systems, valued for their dependability and ability to deliver a consistent flow of fluid even in cases of fluctuating pressure. These pumps work on the principle of conversion of mechanical energy to hydraulic and are crucial to powering machines in all industries from construction to aviation and agriculture to industries. To understand what defines the main components of a hydraulic vane pump is to understand how these pumps work and be able to store them for purposes of manufacturing. Here below, hereinafter we are going to make reference to the five rudimental components upon which this kind of pump functions.

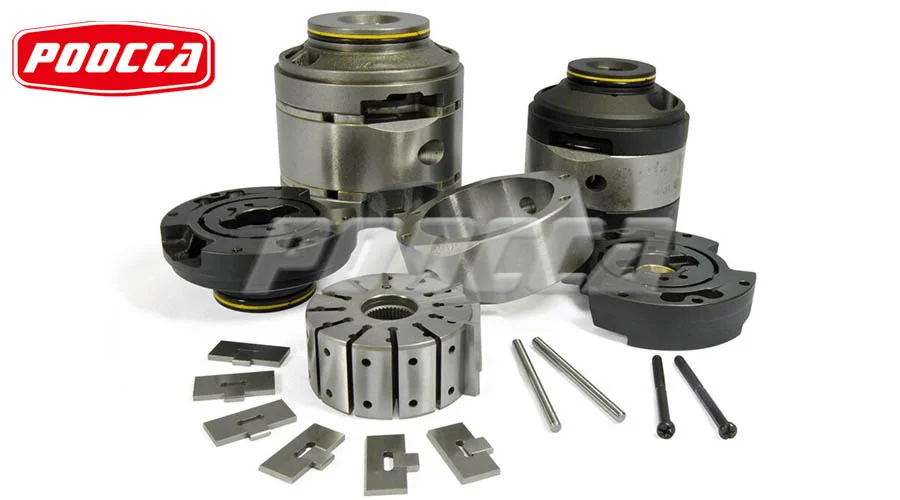

Essential Component 1: The Rotor
Nicely placed at the core of each hydraulic vane pump is the rotor, which is a disk-like component naturally fit onto the head of a drive shaft. The rotor is intended to operate in conjunction with slots or grooves where the vanes are fitted, and it is the sole component that rotates with the objective of producing the pumping action. As the rotor rotates, the vanes enter and exit, creating chambers to draw in and expel fluid. Strength and durability of the rotor also need to be achieved so as to make the pump operational, and hence, by and large, it is made of hard steel and strong alloys. The rotor needs to be well shielded because damage or weakening will cause inferior quality of the pump as well as more noise.
Significant Feature 2: Vanes
The vanes are the most common feature of a hydraulic vane pump. They are flat rectangular slices, tiny, inserted into the rotor slots. The vanes are pushed radially outward from the slot by the centrifugal force against the cam ring as the rotor spins. This produces a series of chambers that scoop and push the hydraulic fluid through the pump in a back-and-forth manner. Vane form and material are the main efficiency and life considerations for the pump. It must be able to support persistent pressure and friction of pump assembly. Worn-out half of vane is revealed by periodic checks that are part of a work of maintenance. Tips of vane need to be inspected on monthly basis so as not to cause the system’s breakdown.
Critical Component 3: Cam Ring
Cam ring is one of the main static components which encases vanes and also rotor. The cam ring’s interior is not a circular one; this is the type that causes the vanes to move outward and inward while the rotor rotates. Since the vanes follow the cam ring’s shape, they create shifting ratios of the chambers, hence the pump’s ability to draw fluid in and expel it under pressure. The cam ring shape and design control the pump displacement and performance. Cam ring wear or damage will lead to loss of efficiency, leakage, and even pump failure.
Key Component 4: Distribution Plates
Distribution plates are a very important component that drives hydraulic fluid flow into and out of the hydraulic vane pump. These plates are mounted on both sides of the rotor and possess ports or openings strategically located such that fluid entering and leaving the pumping chambers is allowed. Distribution plates are designed in a manner that they ensure smooth and efficient flow of the fluid and prevent backflow and mixing of low and high-pressure fluid. Gasketing and correct alignment of the distribution plates are essential to pump operation and to preventing leakage. Paint marks on the distribution plates will disrupt the pump cycle.
Significant Component 5: The Pump Housing
The pump housing is the outer case that contains all the internal elements of the hydraulic vane pump. It guards the internal elements against external forces and contaminants, and provides space for structural support for the pump. The housing also provides mounting points to be mounted into a hydraulic system. Pump housing manufacturing and material are crucial to the capability of withstanding pressure and forces placed upon it when in operation. A robust housing is required for long and dependable life of the pump.
Hydraulic Vane Pump Maintenance
Maintenance to maximum operating efficiency and hydraulic vane pump life. Preventive maintenance includes visual check for leaks, unusual noise, and vibrations, hydraulic fluid level within acceptable ranges, and operating temperatures within acceptable limits. Weekly maintenance consists of cleaning or filter replacement against contamination and hydraulic fluid fittings for tightness checks. The monthly inspections include the checking of vanes tips for wear or deterioration, checking of hydraulic fluid for contamination and degradation, and testing of the system to verify that it is within the correct range of pressure. Preventive maintenance includes replacement of wear parts like seals, bearings, and vanes at a fixed interval, and flushing of the hydraulic system at an interval to purge the system of contaminants. Taking apart the pump, cleaning it, and reassembly if necessary, according to the manufacturer’s procedure, is also a critical maintenance process.
Conclusion: Optimizing Performance and Longevity
Hydraulic vane pump working efficiency and life are conditioned by the condition of its most important components: the rotor, vanes, cam ring, distribution plates, and housing. Clean and regular working requires timely maintenance in forms of inspection, washing, and replacement of used parts. Know-how of each component and observing regular maintenance help you maximize hydraulic systems’ life and efficiency.
Choose POOCCA for Your hydraulic vane pumps
POOCCA manufactures hydraulic pumps, motors, valves, and accessories. Its product series include piston pumps, gear pumps, and vane pumps, and other hydraulic components and accessories.

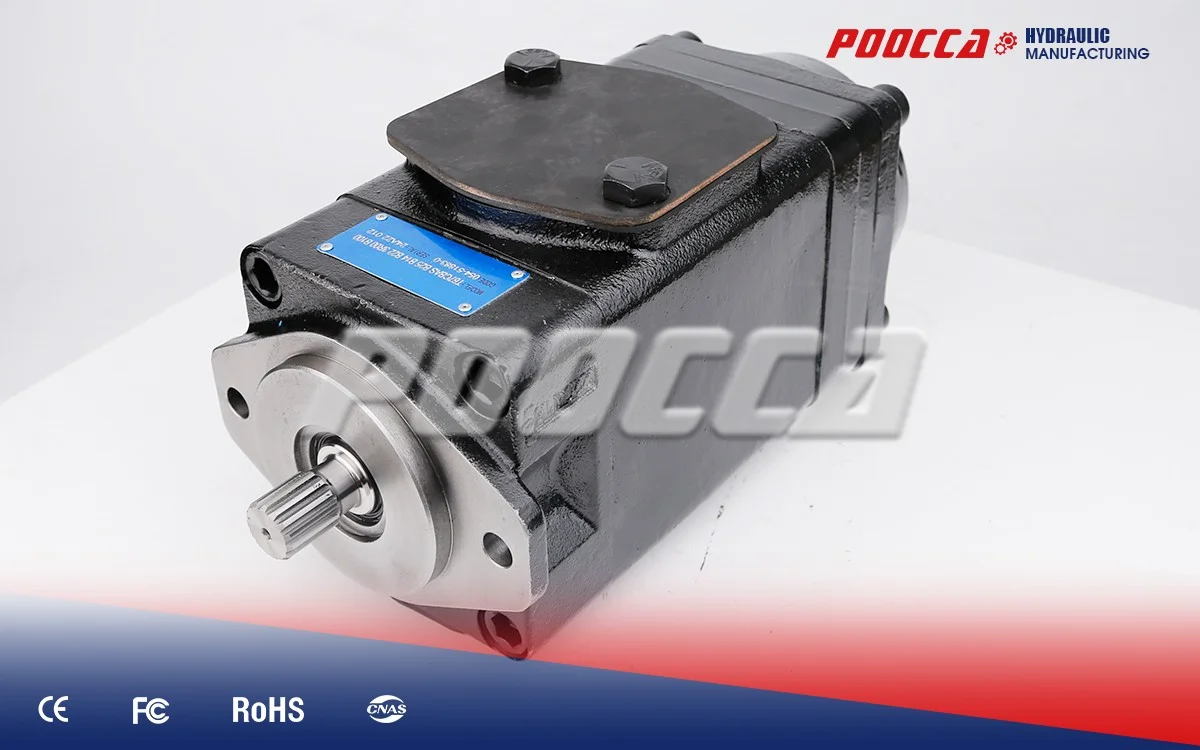

In particular, the company specializes in a wide range of fixed or variable displacement single, double, and triple vane hydraulic vane pumps. The pumps are ideal for industrial use and offer cost-effective, stable, and stable operations. Besides that, POOCCA is also expert in high-quality spare parts offered for renowned brands such as Parker, Yuken, and Vickers, thereby making the company a reliable partner for customers seeking high-quality hydraulic systems.
