Hydraulic motors find their application in almost all areas, particularly heavy industries, due to compatibility with machines and systems besides their capabilities of delivering frictionless power efficiently. With high torque, compact dimensions, and operability even in extreme ambient environmental conditions, the motors stand important for construction, agriculture, and manufacturing industries. This general guide provides an overview of the operating principle, application, advantages, and all other vital considerations to be observed in choosing a suitable hydraulic gear motor for intended applications.
Understanding Hydraulic Gear Motors
A hydraulic gear motor is a mechanical actuator that converts hydraulic pressure and flow into torque and angular displacement (rotation). It acts as the rotary counterpart to the hydraulic cylinder, harnessing the power of pressurized fluid to generate rotational motion. Unlike electric motors, which rely on electrical energy, hydraulic gear motors utilize the energy of pressurized hydraulic fluid, typically oil, to produce mechanical power.
Components of a Hydraulic Gear Motor:
Gear: Most of the elements are from high-strength material to resist wear and abrasion for durability and efficiency in transmission. In fact, one of the main parameters that usually affects efficiency performance and the ratio of transmission is taken into account through the profile of the teeth.
Housing: This allows structural integrity, providing the housing of internal components. According to application needs, either an aluminum alloy may do or even from cast iron.

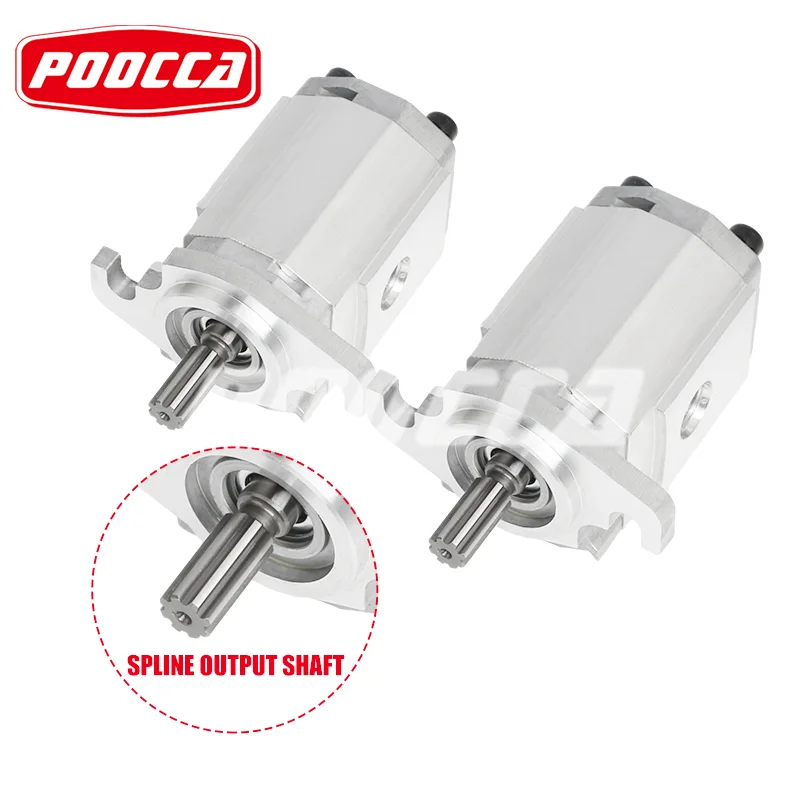

Shaft: The shaft supports gears and transmits rotational force to the connected machinery. Specialized surface treatments are applied to the shaft for wear and fatigue resistance.
Bearings: Support radial and axial loads between the gears and housing for smooth rotation and long motor life. Proper selection and installation of bearings are important for the best performance.
Seals: Sealing rings made of normally rubber and polytetrafluoroethylene are used in order to avoid hydraulic oil leakage and external contamination.
Principle of Operation of Hydraulic Gear Motors
Hydraulic gear motors work according to the principle of positive displacement. That is, a certain volume of fluid is displaced during each revolution of the motor shaft. A hydraulic gear motor basically comprises two meshing gears housed inside a casing. Pressurized hydraulic fluid is fed into the motor, pushing the gears to turn and therefore developing torque and rotational movement. The speed of a gear motor depends upon the rate of flow of hydraulic fluid which goes into it, while the torque output is directly proportional to the pressure on the fluid.
Types of Hydraulic Gear Motors
Hydraulic gear motors have two major classifications:
External Gear Motors: In such motors, there are two external gears intermeshing. Fluid enters the space between the gears and forces them to rotate, thus transmitting power to the output shaft. External gear motors are relatively simple in design, rugged, and less expensive.
Internal Gear Motors: The internal gear motors use one internal gear along with an external gear. The fluid, upon entering in the space between the gears, rotates the internal gear inside the external gear, hence creating a rotational motion. Internal gear motors are usually more efficient and offer much smoother operation as compared to the external gear motors.
POOCCA Hydraulics offers the following models of hydraulic gear motors:
Rexroth AZMF and AZMG
Danfoss SNM, SKU, and SNU
Casappa PLM
Marzocchi GHM series: in 1, 2, and 3 groups and with different sizes and speed ratings. These series are widely used hydraulic motors found in industrial machinery and in mobile equipment.
POOCCA will provide detailed product information on parameters, pictures, and drawing dimensions as well as quotations upon request.
Hydraulic Gear Motor Application
Hydraulic gear motors find wide application in an extensive number of industries like:
Construction Equipment: The Hydraulic Gear Motors find their extensive application in excavators, loaders, cranes, and other heavy machinery. It acts by driving the implementation of various functions such as digging, lifting, and rotating.
Agricultural Machinery: Hydraulic gear motors applied to tractors, harvesters, and other agricultural machinery for wheel drive, implement, and attachment drives.
Industrial Automation: Hydraulic gear motors find application in industrial automation systems, from conveyor controls to robotic arms and other automated machinery.
Marine Applications: Hydraulic gear motors are used in ship steering systems, winches, and other marine machinery because of their high torque and reliability in extreme environmental conditions.
Advantages of Using Hydraulic Gear Motors
Hydraulic gear motors have a few merits that prove their viability in a wide field of application.
These are:
High Torque Output: Hydraulic gear motors could generate high torque at slow speeds; thus, the application could use them which needed a high power level. The compact-sized hydraulic gear motor will be fitted into machinery that contains space issues since it could easily be hanged or attached.
Variable Speed Control: Hydraulic gear motors are featured with variable speed mechanism, so smooth and precise operations and accurate speed variations can be provided by them
Durable and Reliable : as the hydraulic gear motors will be operational even under dire conditions and they are therefore deemed to be very reliable
Selection of Hydraulic Gear Motor
Now, choosing a specific type of hydraulic gear motor for certain applications relies primarily on these considerations including:
Torque Requirements: Find the Torque that will be required from extra load at desired speed Specify the operating speed desired for the motor and acceptable variations in the speed
Pressure and Flow Requirements: Find Pressure and Flow rate of the hydraulic system with which it has to be compatible.
Operating Environment: Specify Temperature, humidity, and contamination involved.
Mounting Configuration: This depends on space availability and/or machinery design specifications where it is fitted.
POOCCA Reliable Hydraulic Gear Motors for You
POOCCA Hydraulics is one of the most renowned manufacturers and suppliers of high-quality hydraulic gear motors in a wide product range suited to various applications. For the reason that POOCCA had a past record existence in the hydraulic industry, with over twenty years down its lanes, POOCCA emerged to be a reliable partner to customers spread across the globe.
Key reasons why POOCCA series hydraulic gear motors will be chosen because it involves:
Variety: POOCCA can provide a wide range of hydraulic gear motors, including external gear motors, internal gear motors, and other models for particular torques, speed, and pressure requirements.
High Quality: Gear pumps made by POOCCA assure high quality, meaning durability and reliability.
Customization: POOCCA gives customization according to particular demands by customers.
Competitive Prices: The competitive prices offered by POOCCA make the product very cost-effective in many applications.
Fast Production and Delivery: POOCCA focuses on the speed of production and delivery for customers to have the product sooner.
Excellent After-service: POOCCA promises the best customer support and technical service to make the whole course smooth and pleasant.
Conclusion
With high torque and relatively small size, and for hostile operating conditions, hydraulic gear motors possess dominant positions in most industrial applications. Generally speaking, they work very well in powering machinery and other systems. The working principle, classification, applications, and various advantages of hydraulic gear motors are discussed here for better selection of motors according to your needs.
With rich experience, a broad product range, a commitment to quality, and features focused on customers, POOCCA Hydraulics is your trusted partner for all hydraulic gear motor needs. For any further information, do not hesitate to contact POOCCA today and discuss your needs to see the wide range of hydraulic solutions they can provide.
